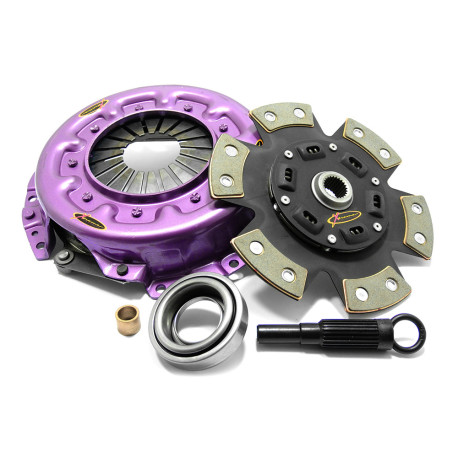

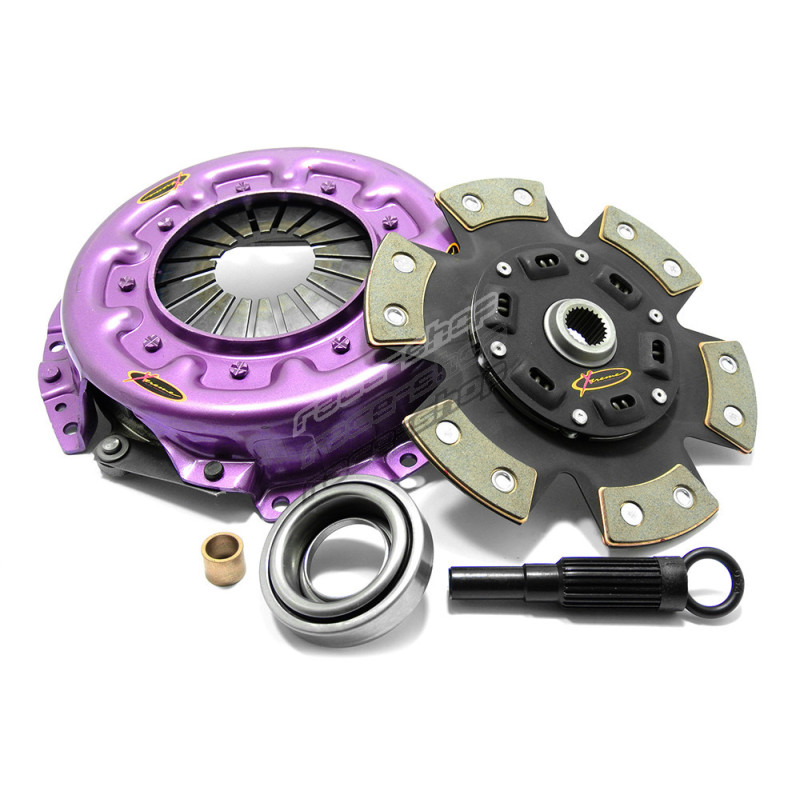

KNI24001-1B Clutch Kit Xtreme Performance Heavy Duty Sprung Ceramic 570Nm 850kg (25%)

Xtreme Performance - sprung ceramic kit /-1BRecommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 570Nm
• Clamp load 850kg 25% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KNI24001-1B

Weight: 9.380000000000001

Note:

Clutch Disc Diameter (mm): 240
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.5
Torque (Nm): 570
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2
Clamp Load: 850Kg (25% inc.)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Nissan/Skyline/R32 | 2.0/1990.01-1993.01/RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01)
Nissan/Skyline/R32 | 2.0 Turbo/1989.03-1993.06/RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan/Skyline/R32 | 2.0 Turbo 4x4/1989.03-1993.06/RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06)
Nissan/Skyline/R32 | 2.0/1990.01-1993.01/RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan/Skyline/R32 | 2.0 AWD/1990.01-1993.01/RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01)
Nissan/Skyline/R32 | 2.5/1989.03-1993.06/RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06)
Nissan/Skyline/R33 | 2.5/1993.07-1998.05/RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan/Skyline/R33 | 2.5 4x4/1993.07-1998.05/RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05)
Nissan/Skyline/R34 | 2.5 4x4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Holden/Calais/VL | 3.0 EFi/1986.03-1988.09/RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Holden/Commodore/VL | 3.0 EFi/1986.03-1988.09/RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09)
Nissan/Skyline/R31 | 3.0/1986.07-1990.12/RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12)
Nissan/Skyline/R31 | 3.0/1985.08-1989.03/RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03) ,
