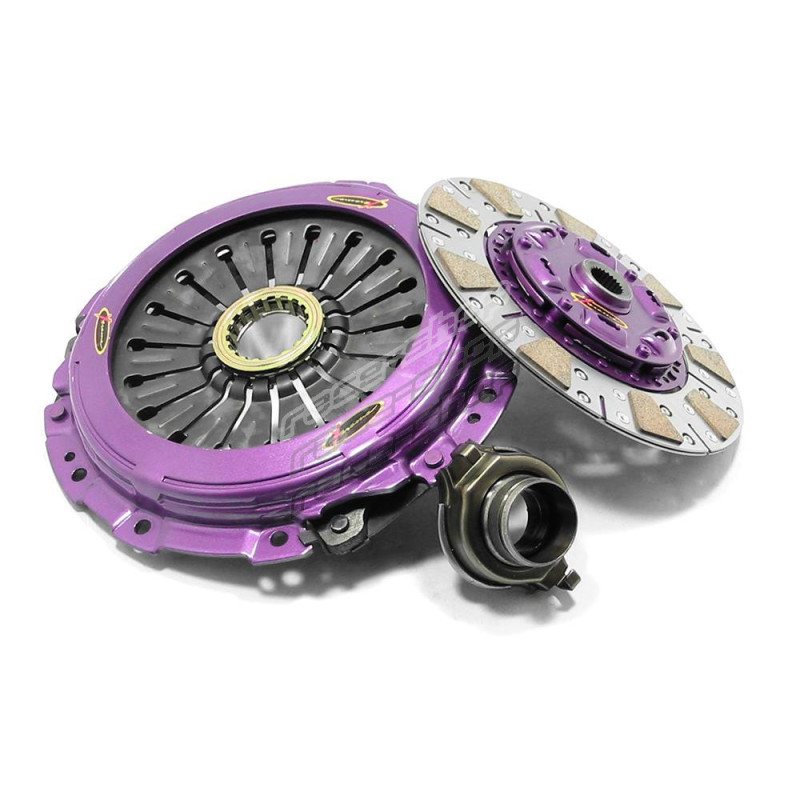

KSU24001-1C Clutch Kit Xtreme Performance Heavy Duty Cushioned Ceramic 1250kg (25% inc) 870Nm

Xtreme Performance - Cushioned Ceramic kit /-1CRecommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 870Nm
• Clamp load 1250Kg 25% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KSU24001-1C

Weight: 9.050000000000001

Note:

Clutch Disc Diameter (mm): 240
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.2
Torque (Nm): 870
Flywheel Step: -15.0mm/.590""
Design: Single Plate
Stage: Stage 2
Clamp Load: 1250kg (25% inc)
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate - 6 Speed Gearbox

Suits 6 Speed Gearbox

Suitable for:

- Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 6 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 AWD (GDB)/2005.10-2007.03/EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox
Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STI AWD (GVF)/2010-2014/EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 i WRX STI AWD/2005.09-2007.12/EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STi AWD (GDF)/2005.09-2007.12/EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 AWD/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 AWD (GDF)/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STI AWD (GRF)/2008.01-2013.08/EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) , Suits 6 Speed Gearbox
Subaru/WRX/STi 2.5 AWD/2014.06-2021/EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - 2021) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 WRX STI 330S AWD/2009.05-2010.12/EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) , Suits 6 Speed Gearbox
Subaru/Impreza/2.5 STI CS400 AWD (GRF)/2010.04-2013.08/EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) , Suits 6 Speed Gearbox
