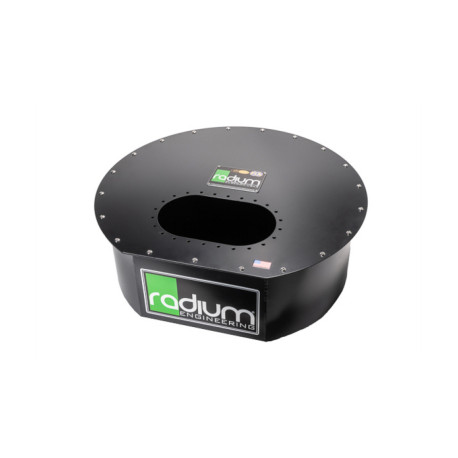

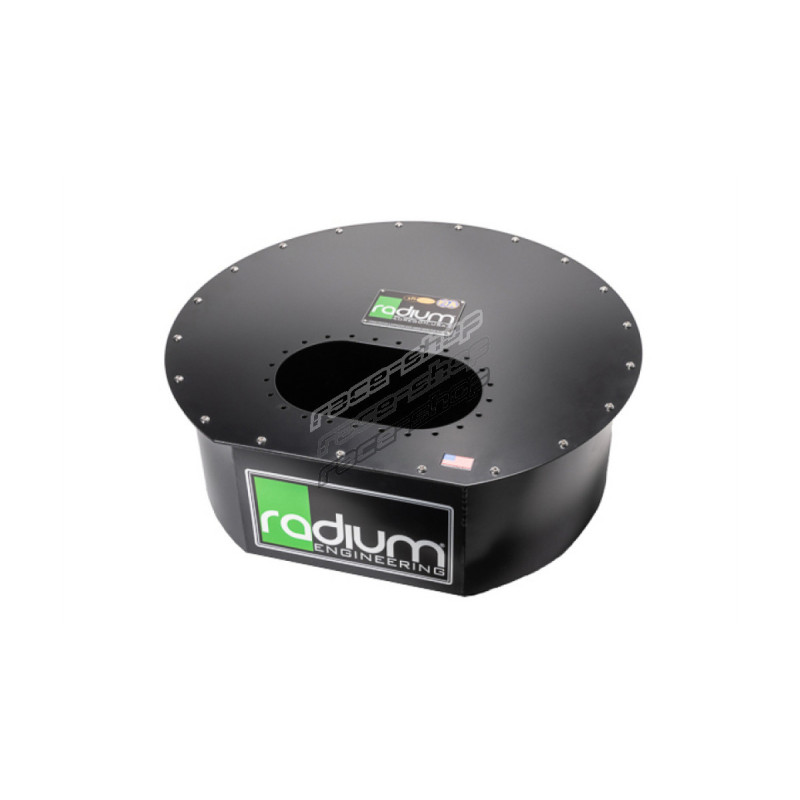

RADIUM ENGINEERING Replacement Fuel Cell Can 40 L Spare Tire

Radium Engineering 20-0671 fuel tank - 10.5 gal (39.7 l)

Spare-tire aluminum housing for the RA-Series 10.5 gal bladder, designed to be mounted in the spare wheel socket. Meets the requirements of FIA FT-3 1999 and SFI 28.3 approvals.

Key features

- Lightweight, powder-coated 5052 aluminum can: corrosion and impact resistance. - Upper flange 6 × 10″, 24-bolt - fits FCST systems (e.g., Radium 20-099X-XX). - Pre-threaded M8 mounting points for easy frame or cage installation. - Integrated AN pass-throughs and cutouts for ¼-turn quick connectors speed up connection of fuel lines. - Internal anti-sloshing foam (included with bladder) minimizes fuel rippling during overloads. - Chemical resistance to gasoline, ethanol (E85) and methanol - thanks to the compatible RA-Series bladder.

External dimensions

Length: 694mm

Width: 673mm

Height: 414mm
