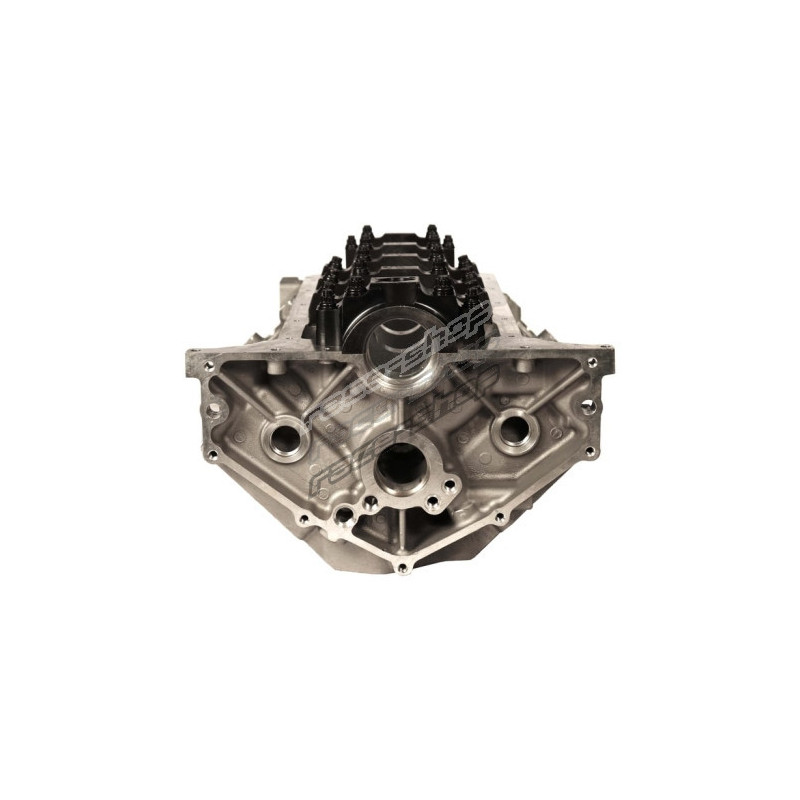

DART Race Series Chevy Small Block Aluminum Block – 4.180" Bore, 8.850" Deck

The Race Series Aluminum block features cylinder bores which have been spread to 4.500 in. from the standard 4.400 in. center to center dimension This allows larger bore diameters while maintaining adequate cylinder wall thickness and gasket sealing surface between bores
Premium alloy: Dart Aluminum blocks are cast from proprietary RMR cast Aluminum alloy for superior strength; 4.500” bore spacing allows bore sizes up to 4.250”; Standard 17 head bolt pattern or optional 19 bolt pattern available; Deck heights of 8.850”, 9.025”, 9.075” and tall deck 9.325” & 9.500” versions allow greater versatility for preferred rod ratio and angle; Raised camshaft .391” (4.912” camshaft-to-crankshaft centerlines) Option for .434” raised cam aLS2o available; Requires use of remote oil filter. No provision for block mounted filters; Relocated oil pan raiLS2 are spread .400” per side (.800” wider than stock) to increase crank/rod clearance and reduce windage losses; Big block camshaft bearings allow the use of cams with larger base circle diameter to improve strength and reduce twisting with cam-driven pumps; Rear external oil inlets, with crossovers and restrictor provisions located centrally in the valley; Parts kit included

• Industry: Automotive
• Camshaft Location: Raised 0.391 IN
• Cylinder Bore Diameter: 4.180 IN
• Deck Height: 8.850 IN
• Engine Block Weight: 105 LBS
• Freeze Plug Type: Screw-in
• Camshaft Lifter Bore: 0.824 IN
• Main Bearing Type: Chevrolet 350
• Main Cap Type: Steel
• Material: RMR Cast Aluminum Alloy
• Rear Main Seal Type: 2-Piece
• Product Type: Engine Block
• Engine Block Material: RMR Cast Aluminum Alloy
• Make - Web: Chevrolet
• Engine - Web: Small Block
• Emissions Code: 3
