WISEFAB lock kit for BMW M4 F82

Product Features:

• Suitable for BMW F20 F21 F22 F30 F31 F32 F80 F82 F87
• Over 60° of steering angle
• Corrected roll centre
• Ackermann angle adjustment
• Precise camber adjustment
• Adjustable top mounts

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

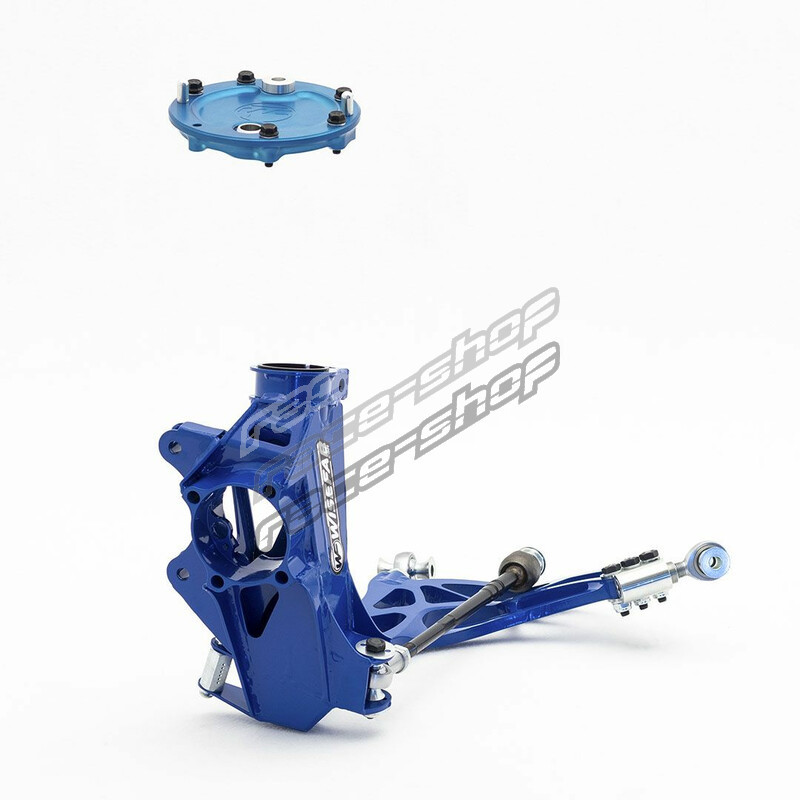

Kit contents :

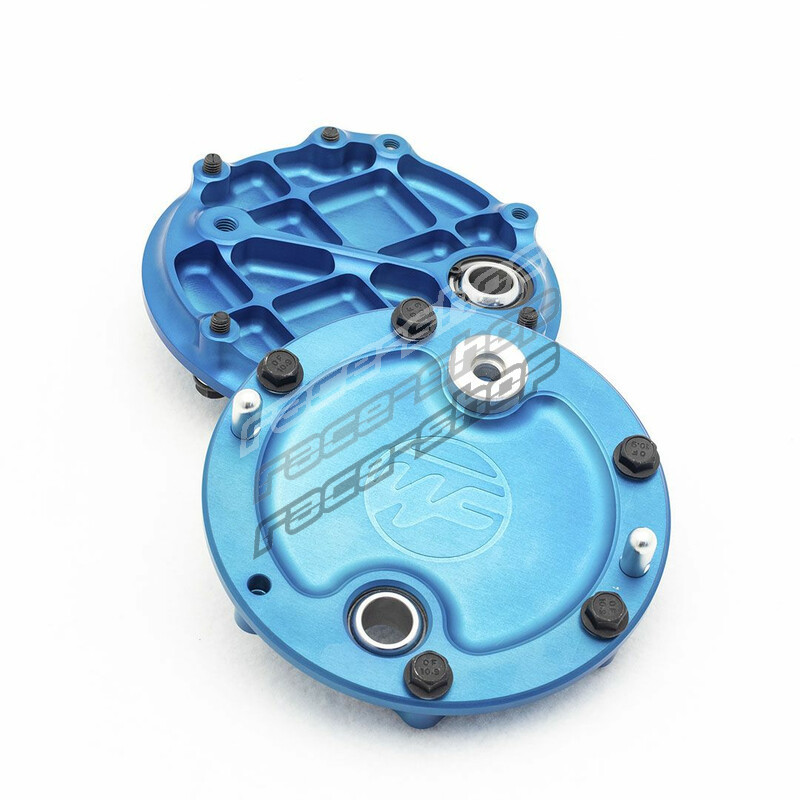

• Adjustable "FD Legal" coilover upper mounts
• Knuckles
• Lower control arms
• Tie rods
• Brake adapters for M model brakes
• E90 steering rack conversion kit
• All required fixings for installation

Manufacturer advice :

• Uprated bushes are strongly recommended
• Wisefab recommend a wheel diameter that doesn't exceed 635 mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 for example)
• Wide arches or arch extensions are useful for this kit
• 17" minimum diameter front wheels, 8" wide with an ET35 (or near spec, like 7" ET45 or 9" ET20)
• Adjust camber from -4 to -5°
• Adjust caster from 5.5 to 6.5°
• Adjust toe in/out to 0°
