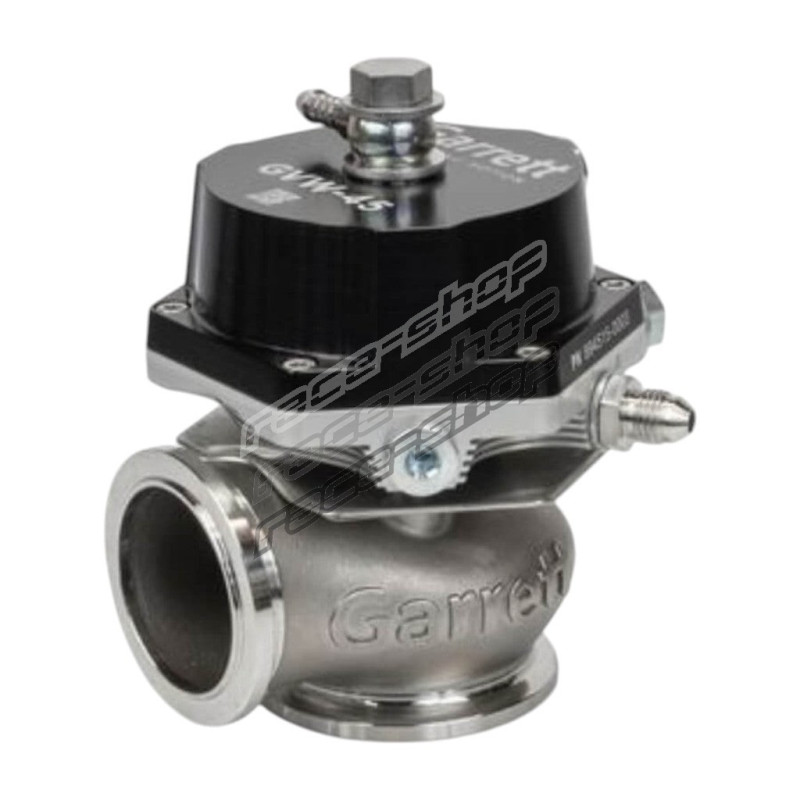

Garrett 908828-0003 External Wastegate GVW-45 1 Bar, Black

Garrett GVW-45 external wastegate — regulates turbocharger shaft speed by venting exhaust gas around the turbine stage, with CFD-optimised flow and precise boost control.

The GARRETT 908828-0003 GVW-45 external wastegate in black is designed to regulate turbocharger shaft speed by redirecting exhaust gases around the turbine stage.

With a CFD-optimized design, it ensures maximum flow capacity and precise boost control.

Advanced thermal optimization improves diaphragm durability, while the robust cap construction enables quick spring replacement and simplified servicing.

Liquid-cooled actuator ports reduce body temperature by up to 52%, making the GVW-45 highly reliable under extreme motorsport conditions.

Specifications

• Valve diameter: 45 mm
• Type: external
• Base pressure: 1.0 Bar (14.5 PSI)
• Adjustable range: 0.2 Bar (3 PSI) – 1.6 Bar (23 PSI)
• Outlet: V-band
• Colour: Black

Features

• CFD-tested for maximum flow and boost control
• High thermal efficiency and actuation stability
• Replaceable valve and bushing components for extended lifespan
• Robust cap design for simplified diaphragm replacement
• Liquid-cooled actuator ports (up to 52% reduction in body temperature)
• Black anodized aluminum actuator cover
• Available in four colors: Red, Blue, Black, Silver
• Sizes: 40 mm / 45 mm / 50 mm / 60 mm
