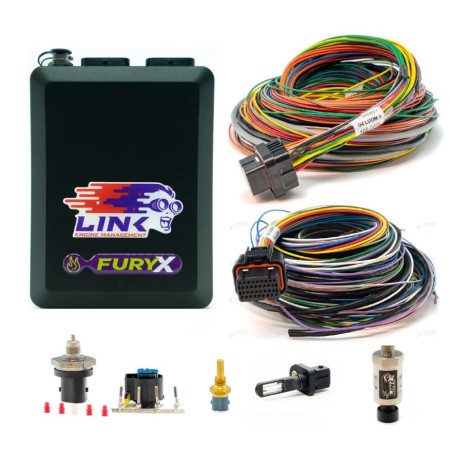

G4X FuryX Wire-In Bundle - ECU + Looms + Sensors

• G4X FuryX - A premium ECU with Onboard Digital Wideband.
• A loom medium - 2.5 m long 'A' loom to suit G4X (FuryX)
• B loom medium - 2.5 m long 'B' loom to suit G4X (FuryX)
• Air Temperature Sensor
• Coolant Temperature Sensor
• Pressure sensor - for oil or fuel pressure up to 10 bar
• Combined pressure and temperature sensor

Inputs

• 8/10* x Digital inputs
• 4x Temperature inputs
• 9x Analog inputs
• 2x Trigger inputs
• 2x Knock inputs
• 1x LSU 4.9 Wideband lambda sensor input

Outputs

• 8x Injection drives
• 6x Ignition drivers
• 10x Auxiliary outputs^
• +5V Sensor power supply
• +8V Sensor power supply
• ^unused fuel and ignition drives can be used as additional Aux outputs

Communications

• 2*x CAN bus
• 1x Serial (RS232) connection
• 1x USB tuning connection

Dimensions

• 185mm(L) x 130mm(W) x 40mm(H) (without looms)

Mass

• 680g
