WISEFAB lock kit for Nissan Skyline R33

Name: WISEFAB lock kit for Nissan Skyline R33
Brand: Wisefab
SKU: WF330
Price: 2774.60 EUR
Availability: BackOrder

As one of the most popular cars used for drifting, Wisefab have finally produced the ultimate big lock kit for the Nissan Skyline. With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer 60° of drift optimised steering lock. Being double wishbone, this kit does not alter the Skyline's top mount position, making the kit "FD legal", eligible for competition worldwide.

Prikaži puni opis

Stanje: Novi proizvod

Referenca: WF330

Upit o proizvodu

Product Features:

To suit Nissan Skyline R33
Over 60° of steering angle
Corrected roll centre
Ackermann reduction and adjustment
Precise camber adjustment
Requires S14 or S15 hubs

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

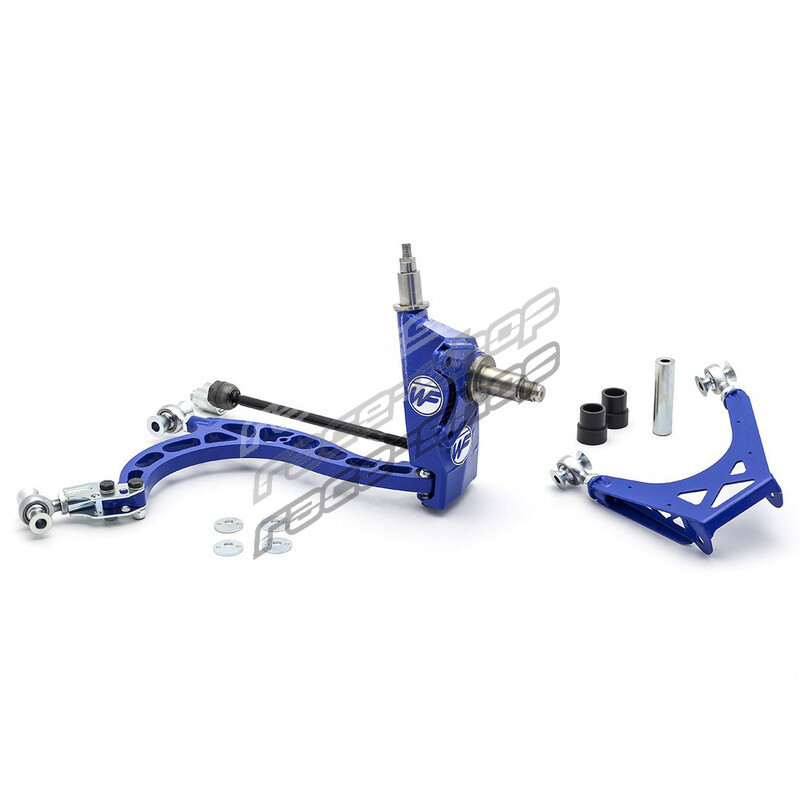

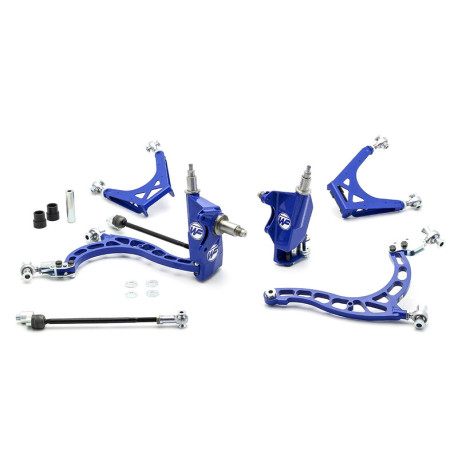

Kit contents :

Hub knuckles
Single piece lower arm/tension rod
Upper (camber) arms
Tie rods & tie rod ends
Offset steering spacers
All required fixings for installation
Adjustable Ackerman - easily tune Ackermann settings to your specific requirements

Please note : S14 or S15 hubs are required, and this kit is not suitable for GT-R and other 4WD Skyline models.

Manufacturer advice :

Wisefab recommend a wheel diameter that doesn't exceed 635 mm (225/45R17, 235/40R17, 235/35R18, 255/30R18 for example)
Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
Minimum wheel diameter of 17" with an 8" width and an ET35 (or near spec like 7" ET45 or 9" ET20)
Adjust camber from -4 to -5°
Adjust caster from 3.8 to 4.8°
Adjust toe in/out to 0°
