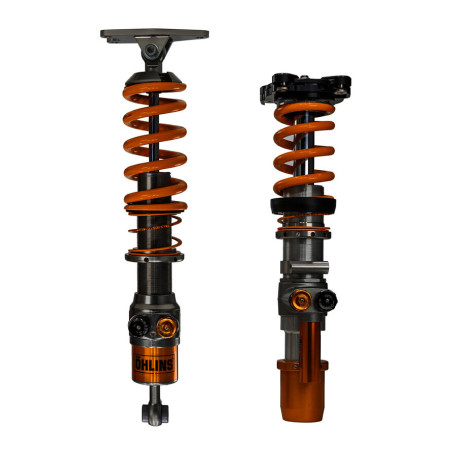

Ohlins Advanced Trackday coilover set for BMW M2/M3/M4 (G8X)

Have you ever dreamt about turning your trackcar into a proper racecar? With Öhlins Advanced Trackday applications it’s possible to turn your daily driver into a proper racecar. Öhlins developed these Advanced Trackday applications to improve performance at the track. With the individual compression and rebound adjusters, you’ll be able to optimize performance effortlessly.

Product specification:

• Race-proven Ohlins Twin-Tube technology (TTX)
• Separate adjustment for compression and rebound damping
• Aluminum high strength and light-weight design
• Top mounts specially designed by Öhlins & Millway
• Tested and validated for multi-compound tyres (semi-slick)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)

Features FRONT:

• TTX46 McPherson shock absorber
• 2-way damping adjustment
• Spring preload adjustment
• Camber & caster adjustable Aluminum uniball top mounts
• Drop links with spherical bearings
• Upgrade to 3-, 4- or 5-way damping adjustment possible

Features REAR:

• TTX36 shock absorber, coil over design
• 2-way damping adjustment
• Separate spring preload adjuster
• Aluminum top mounts
• Upgrade to 3-, 4- or 5-way damping adjustment possible

Package includes:

• 1x Shock absorber set, part no. BMV MX01

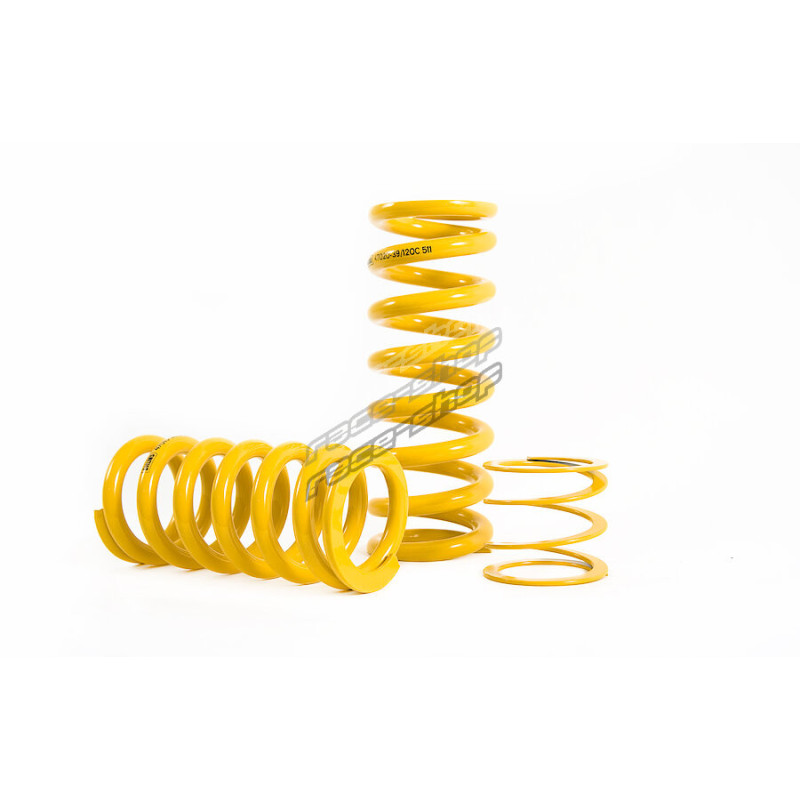

• 2x Front spring, part no. 48140-29
• 2x Rear spring, part no. 48170-23
• 4x Helper spring front/rear, part no. 05173-12
• 1x Top mount set front, part no. 05926-24
• 1x Top mount set rear, part no. 05926-13
• 1x C spanners (for spring preload adjustment)

Additional information:

• Cancellation kits and brackets are not included and need to be ordered separately. If needed, EDC Cancellation Kit, part no. 35020-33 incl. bracket kit, part no. 35021-05

Application:

• BMW M2 (G87), 2023+
• BMW M2 CS (G87), 2025+
• BMW M3 (G80/G81), 2020+
• BMW M4 (G82/G83), 2020+
