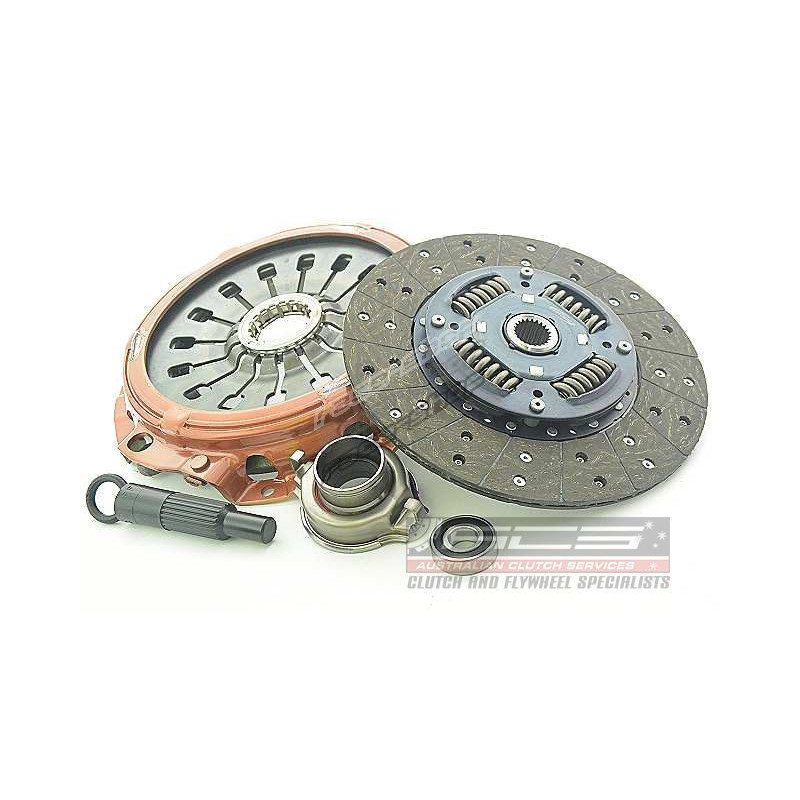

KMI25002-1AX Clutch Kit Xtreme Outback Extra Heavy Duty Organic 580NM 1150Kg (55%)

Xtreme Outback - Heavy duty sprung organic kit /-1ARecommended for: Vehicles with significant performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the Heavy Duty equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades

Specifications:

• Torque capacity 580Nm
• Clamp load 1150Kg 55% Increased over standard
• Organic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme Outback

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again. Each kit is carefully developed in-house at Xtreme Outback and tested extensively around the world.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KMI25002-1AX

Weight: 8.73

Note:

Clamp Load: 1150KG (55% inc.)
Flywheel Step: 0
Clutch Disc Diameter (mm): 250
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26,3
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Diameter [mm]: 250
Stage: Stage 1X
Torque (Nm): 580

Suitable for:

- Mitsubishi/Delica / Space Gear/2.8 D 4WD (PD8W. PE8W)/1994.01-2006.12/4M40-T 2835 Diesel 103 kW 140 BHP (1994.01 - 2006.12)
Mitsubishi/Delica / Space Gear/2.8 D 4WD (PD8W. PE8W. PF8W)/1994.01-2006.12/4M40-T 2835 Diesel 92 kW 125 BHP (1994.01 - 2006.12)
Mitsubishi/L200/2.8 TD/2003.04-2006.06/4M40-T 2835 Diesel 92 kW 125 BHP (2003.04 - 2006.06)
Mitsubishi/L200/2.8 TD 4WD (K77T)/2003.04-2006.06/4M40-T 2835 Diesel 92 kW 125 BHP (2003.04 - 2006.06)
Mitsubishi/L200/2.8 TD 4WD/2003.04-2006.12/4M40-T 2835 Diesel 92 kW 125 BHP (2003.04 - 2006.12) ,
