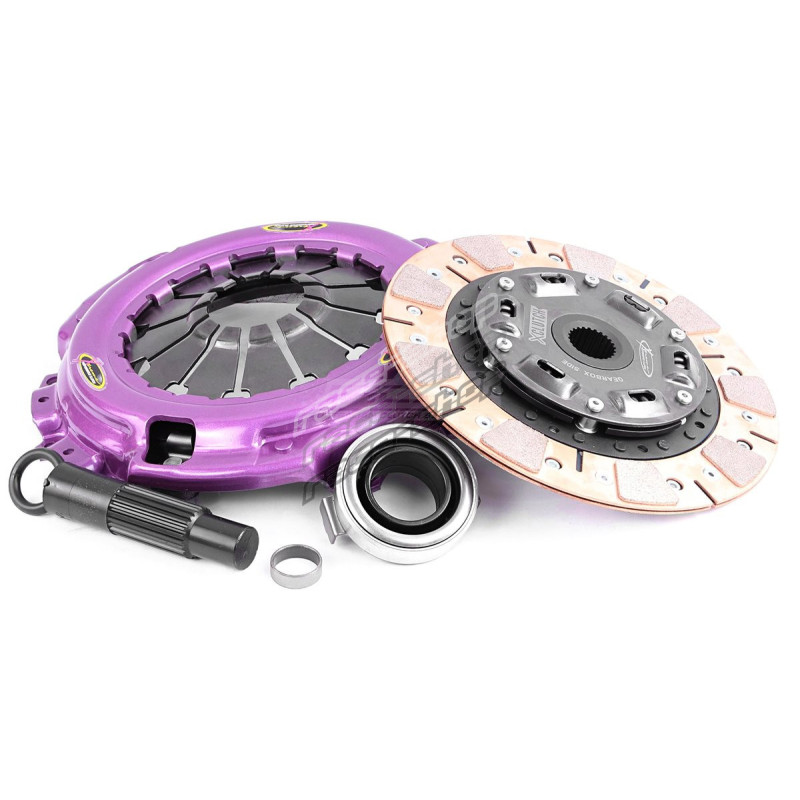

KHN22022-1C Clutch Kit Xtreme Performance Heavy Duty Cushioned Ceramic 650Kg 430Nm

Xtreme Performance - Cushioned Ceramic kit /-1CRecommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

• Torque capacity 430Nm
• Clamp load 650Kg Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KHN22022-1C

Weight: 4.21

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 430
Flywheel Step: +1.0mm/.040""
Design: Single Plate
Stage: Stage 2
Clamp Load: 650Kg
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Honda/Civic/Gen. VII | 2.0 Type-R (EP3)/2001.09-2005.09/K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09)
Honda/Integra/2.0 (DC5)/2004.10-2007/K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - 2007)
Honda/Civic/Gen. VIII | 2.0 i-VTEC Type R (FD2)/2007.08-2010.09/K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09)
Honda/Integra/2.0 Type-S/2004.10-2007.04/K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04)
Honda/Integra/2.0 16V Type-R (DC5)/2002.02-2007/K20Z1 1998 Petrol 162 kW 220 BHP (2002.02-2007)
Honda/Civic/Gen. VIII | Type R (FN2)/2006.09-2012.01/K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 - 2012.01)
Honda/Civic/Gen. VIII | 2.0 i-VTEC Type R (FN2)/2010.03-2010.12/K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12) ,
