WISEFAB lock kit for Toyota GT86 (LHD)

Name: WISEFAB lock kit for Toyota GT86 (LHD)
Brand: Wisefab
SKU: WF860 LHD
Price: 3654.40 EUR
Availability: OutOfStock

With increased steering lock, corrected roll centre, camber adjustment and an Ackermann reduction, this kit will offer over 60° of drift optimised steering lock. This kit is "FD Legal", meaning the top mount stays within OEM specification - making the kits eligible for competition worldwide.

Prikaži puni opis

Stanje: Novi proizvod

3.654,40 € s PDV-om1

Privremeno nedostupno

U Skladištu: 0 kom

Nažalost, proizvod je privremeno nedostupan. Molimo odaberite drugi.

Za automatsko obavještavanje o dostupnosti proizvoda,
klik na "Obavijesti nakon dostupnosti proizvoda".

Upit o proizvodu

Upozoriti kad bude dostupno

Referenca: WF860 LHD

Product Features:

To suit Toyota GT86
62° of steering angle
Corrected roll centre
Ackermann reduction and adjustment
Precise camber adjustment
Adjustable top mounts
Made from CNC'd 7075-T6 aluminium

Fruit of the research and hard work by the Wisefab engineers, this kit ensures perfect alignment of the front axle. Even at full lock, the wheels stay flat on the ground without excessive camber. Guaranteeing you absolute control of the vehicle, even in extreme situations. Using extensive R&D and the latest fabrication methods, Wisefab bring you a kit that ensures excellent geometry, huge steering lock and durability suited to the highest levels of competition.

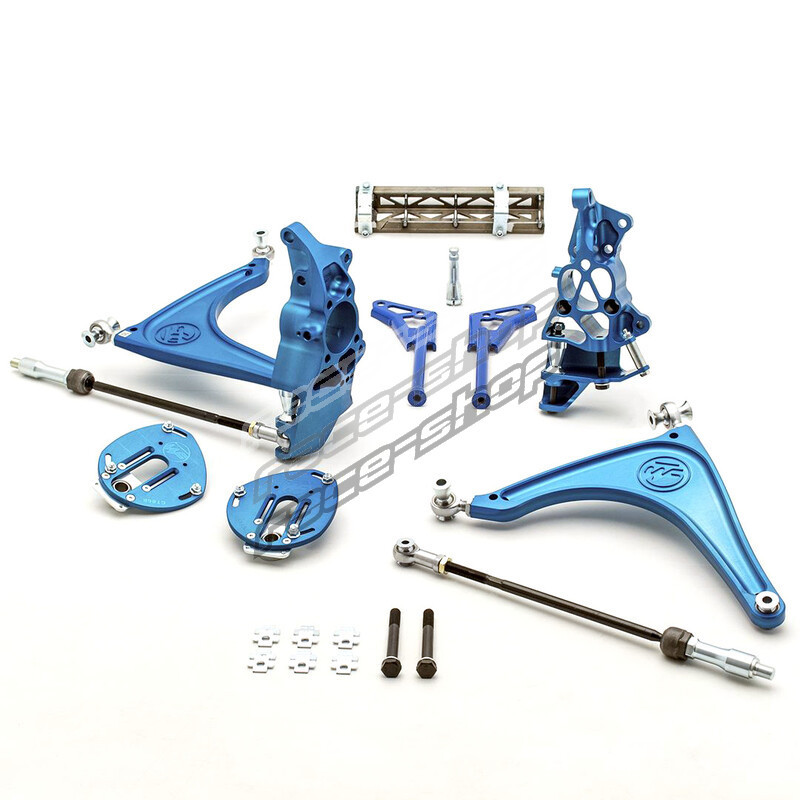

Kit contents :

Camber adjustable top mounts
CNC aluminium uprights
CNC aluminium lower arms
S-Chassis steering rack mount
Tie rods
Tie rod ends
All required fixings for installation
Ackermann adjustment kit - easily fine tune your Ackermann angle

Manufacturer advice :

Wisefab recommend a wheel diameter that doesn't exceed 605 mm (215/40R17, 225/40R17, 215/35R18, 225/35R18 for example)
Wide arches or arch extensions are useful for this kit (track width is increased of about 5 cm at each side)
Adjust camber to -6°
Adjust caster to 5°
Adjust toe in/out to 0°
Use 17 ou 18" inch, 8" wide with an ET35 (or near size, like 7" ET45 or 9" ET25)

This kit comes with everything needed for a "plug and play" installation. If you have any questions, do not hesitate to ask!
