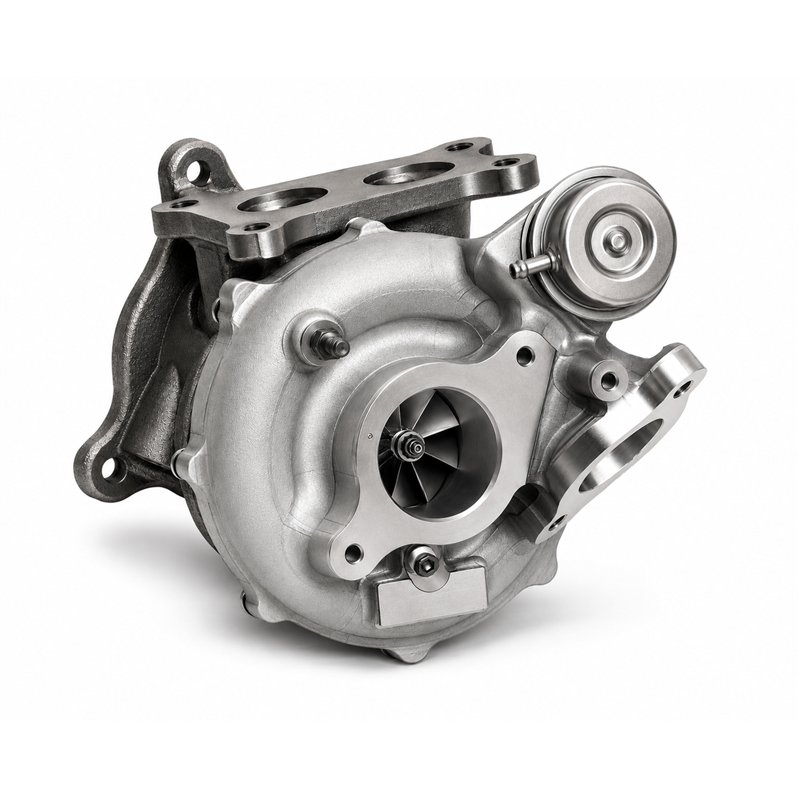

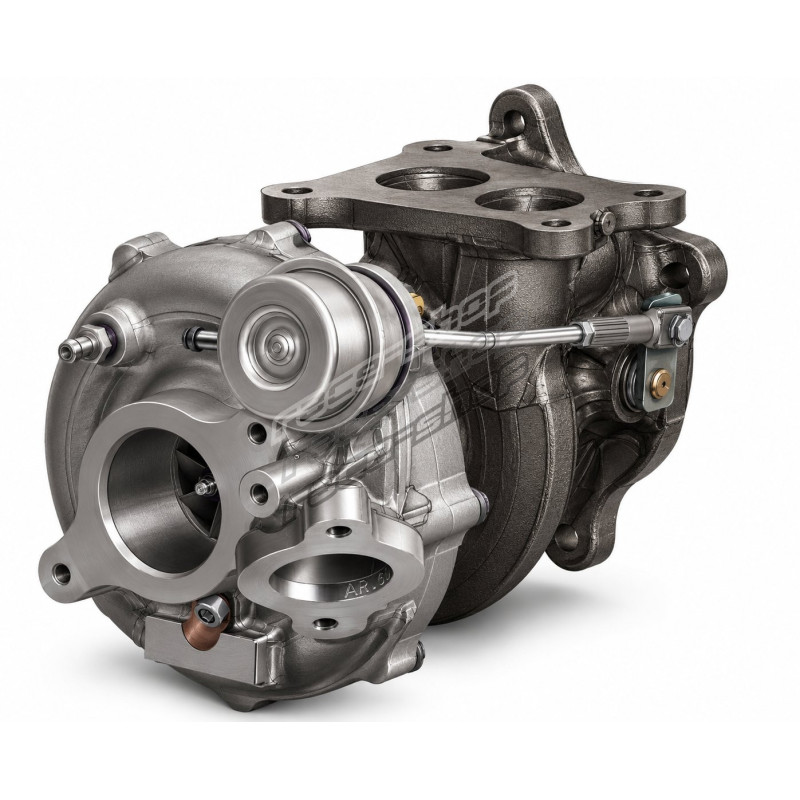

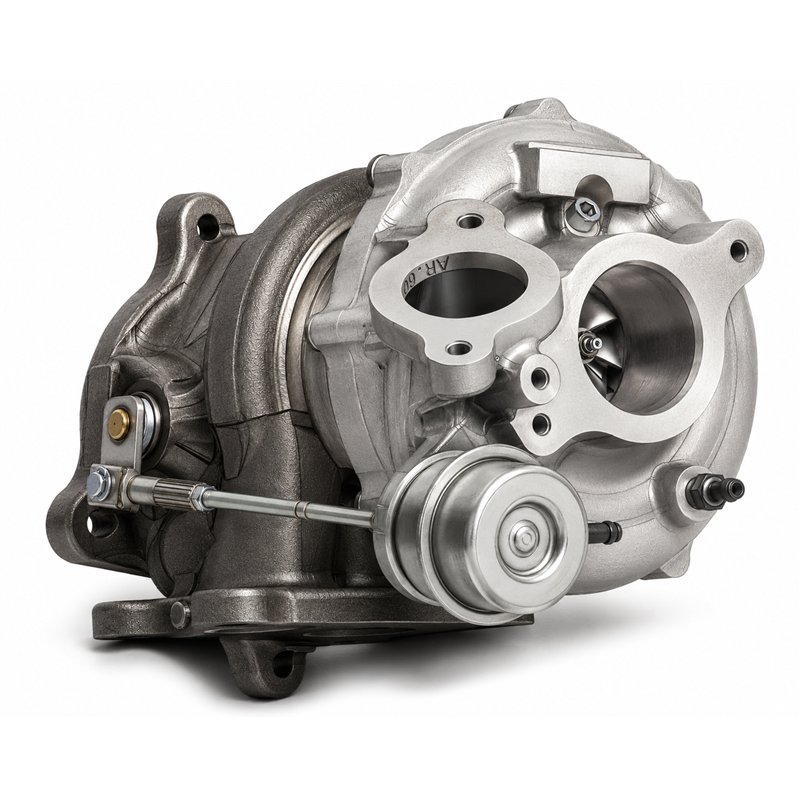

Garrett 953292-5001S PowerMax Turbocharger for Subaru FA20F/FA20E 2.0L (12-21)

Performance-enhanced turbocharger — a direct-fit Garrett PowerMax upgrade for Subaru models equipped with the 2.0L FA20F / FA20E direct-injection turbo engine.

The Garrett PowerMax turbocharger is designed as a direct replacement for the original Garrett unit, retaining the factory mounting points and connections while providing increased compressor airflow and greater performance potential.

This direct-fit, bolt-on turbocharger is supplied with a calibrated pneumatic actuator for straightforward installation. It is engineered to OEM-level standards for durability, reliability and long-term performance.

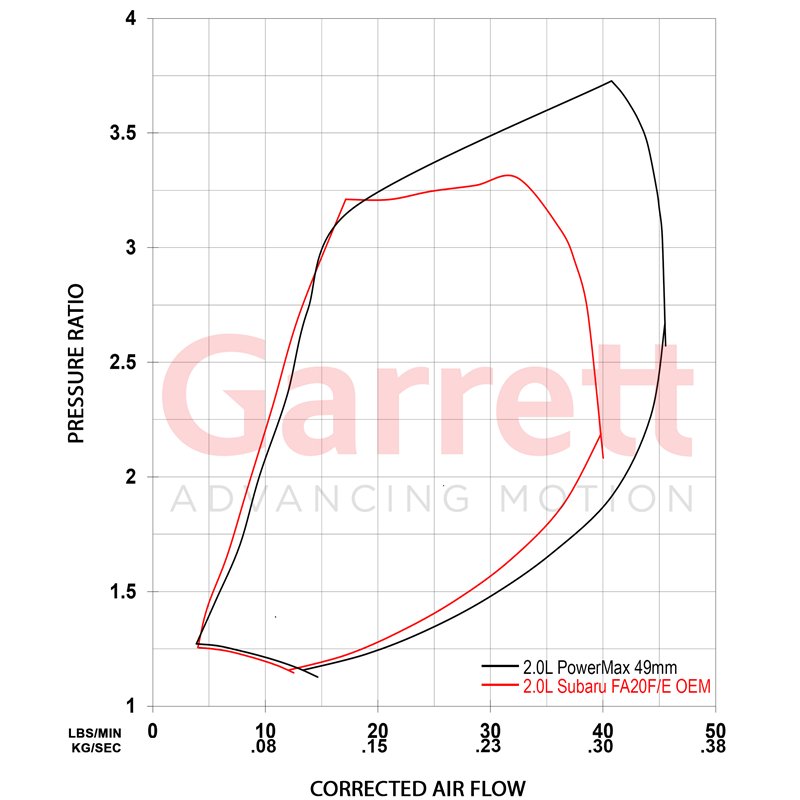

Compared with the original turbocharger, the PowerMax unit provides approximately 18% greater compressor airflow and supports up to 480 BHP / 353 kW. ECU calibration is required to fully utilise the increased airflow and performance capability.

Specifications

• Vehicle: Subaru FA20F / FA20E 2.0L DIT
• Supported power: up to 480 BHP / 353 kW
• Compressor flow increase: +18% compared with OEM
• Turbocharger model: MGT2260
• Compressor inducer: 49 mm
• Compressor exducer: 60 mm
• Turbine inducer: 50 mm
• Turbine exducer: 44 mm
• Actuator: pneumatic
• Wastegate: internal
• Fitment: direct-fit, no fabrication required

Fits & compatible parts

• Subaru Forester SJ 2.0XT: 2013-2018
• Subaru WRX VA Non-STI: 2015-2021
• Subaru Legacy B4: 2012-2018 2.0 GT models
• Subaru Levorg: 2014-2021 2.0 GT / GT-S
• Subaru WRX S4 VAG: 2014-2021 GT / GT-S
• Related OEM part numbers: 14411AA880, 14411AA881
• Related Garrett OES numbers: 814306-5014S, 814306-5007S, 814306-5005S, 814306-5001S

Features

• Supports up to 480 BHP / 353 kW
• Approximately 18% increased compressor airflow compared with the OEM turbocharger
• Direct-fit bolt-on design using the original mounting points and connections
• Calibrated pneumatic actuator for straightforward installation
• Engineered to OEM standards for durability, reliability and long-term performance
• Improved airflow, power potential and throttle response
• Fully machined speed sensor port for turbocharger speed monitoring and tuning optimisation
• Compatible with Garrett G-Smart Bluetooth module 923586-0002 and speed sensor kits 781328-0001 or 781328-0002
• No fabrication required for installation

Important: Compatible with Subaru vehicles equipped with the OEM Garrett MGT2259S / MGT2259LS turbocharger and FA20F / FA20E direct-injection turbo engines. It does not fit naturally aspirated FA20D engines used in Subaru BRZ, Scion FR-S or Toyota 86 applications.

The maximum specified turbocharger speed is 185,000 RPM. Operation above this speed may result in turbocharger damage or premature failure.
