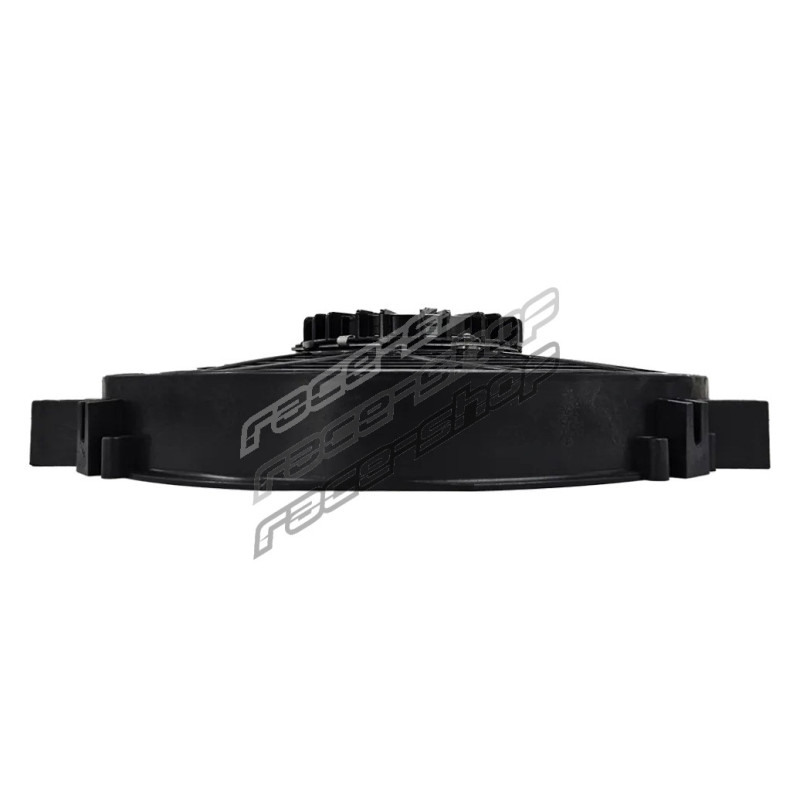

Brushless 12" High power Thermatic Electric Fan (12V)

Davies Craig Brushless Thermatic Fans deliver up to a staggering 53% increase of air flow and 5 times the service life over standard brushed models.

It is also 25% thinner than its brushed High Power motor equivalent! Suitable for use as:

• Radiator cooling fans
• Air conditioner condenser fans
• Transmission and engine oil cooler fans

The IP68 rated motor features built-in reversible motor rotation technology and nine (9) different smart motor control modes (PWM, analogue, or full speed).

Set up for UPSTREAM / PUSHER applications from the factory.

Technical data & Contents

SPECIFICATIONS

• Airflow: 1295 CFM (2200 m³/h)
• Max Current: 18.0A
• Weight: 1.40 kg (3.0 lb)

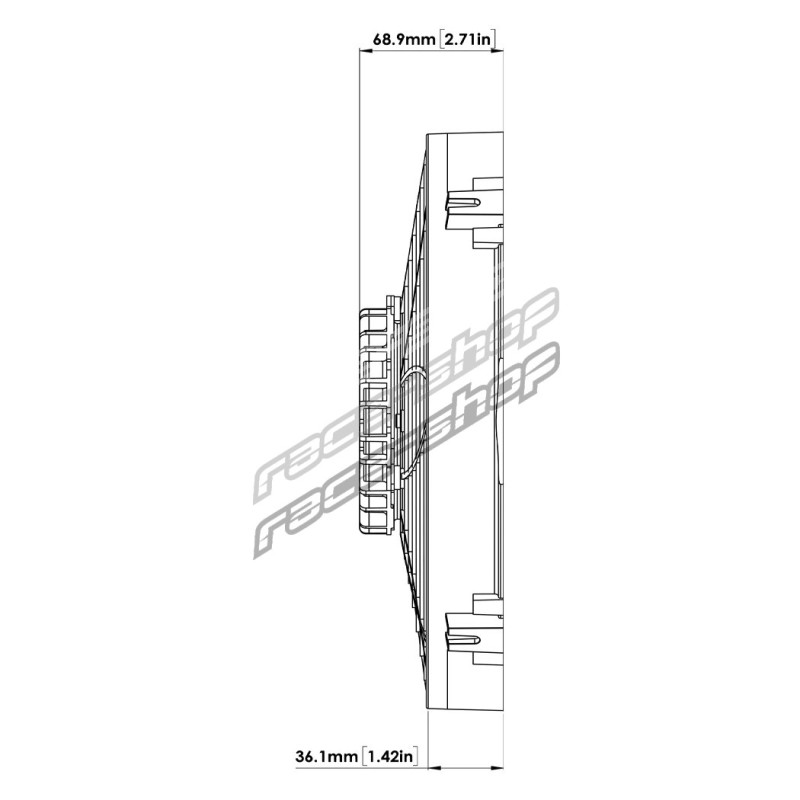

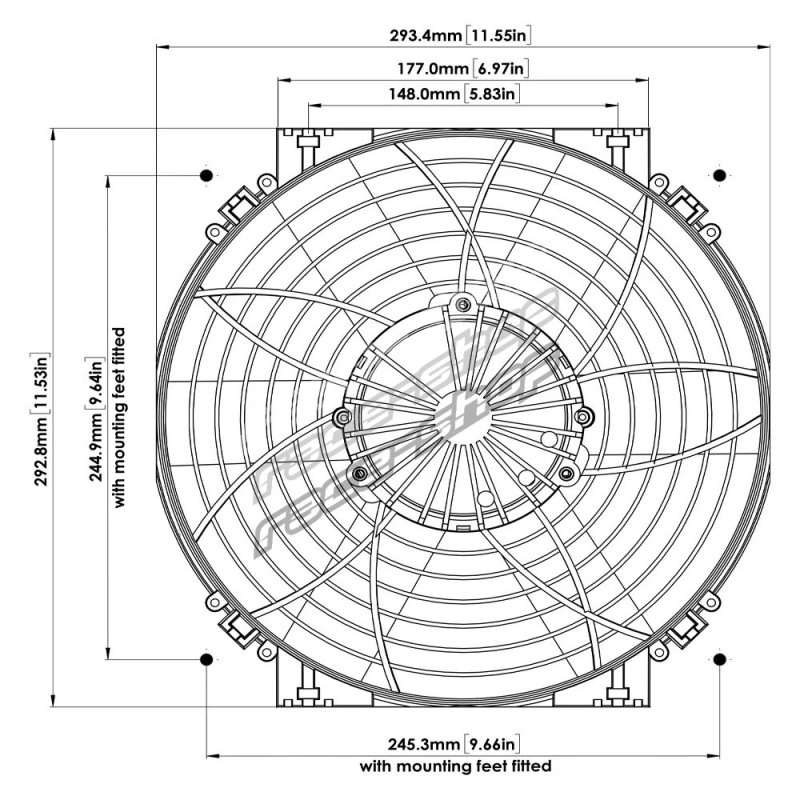

• Dimensions: 293h x 293w x 69d mm

COMPONENTS

• 1: 12" High Power Brushless Fan (12V)
• 4: Mounting feet

Brushless Speed Control Settings

• Parameter: Speed Range; Minimum: 420 RPM; Maximum: 4200 RPM
• Parameter: PWM Frequency; Minimum: 100 Hz; Maximum: 1000 Hz
• Parameter: PWM Duty Cycle; Minimum: 0%; Maximum: 100%
• Parameter: PWM Signal Voltage; Minimum: 7.5 V; Maximum: 18 V
• Parameter: Analogue Voltage; Minimum: 0 V; Maximum: Supply voltage

Universal Fan Fitting Kit & Control Options

Mounting Hardware (Sold Separately)

• Quick Fit Kit: Part DC0579
• Mounting Hardware: Part DC0578
• Dual Fan Mounting Kit: Part DC1002
• Bracket Mounting Kits: Parts DC1000, DC1001, DC1002, DC1003

Control Mode Interface

• Digital Switches (12V & 24V):
  DC0444, DC0445, DC0448, DC0435, DC0438, DC0500
• Mechanical Switches:
  DC0401, DC0404, DC0400
