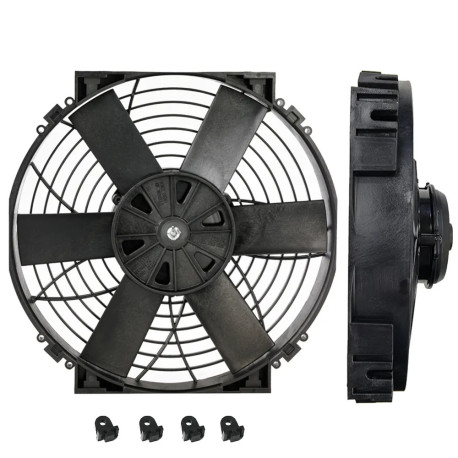

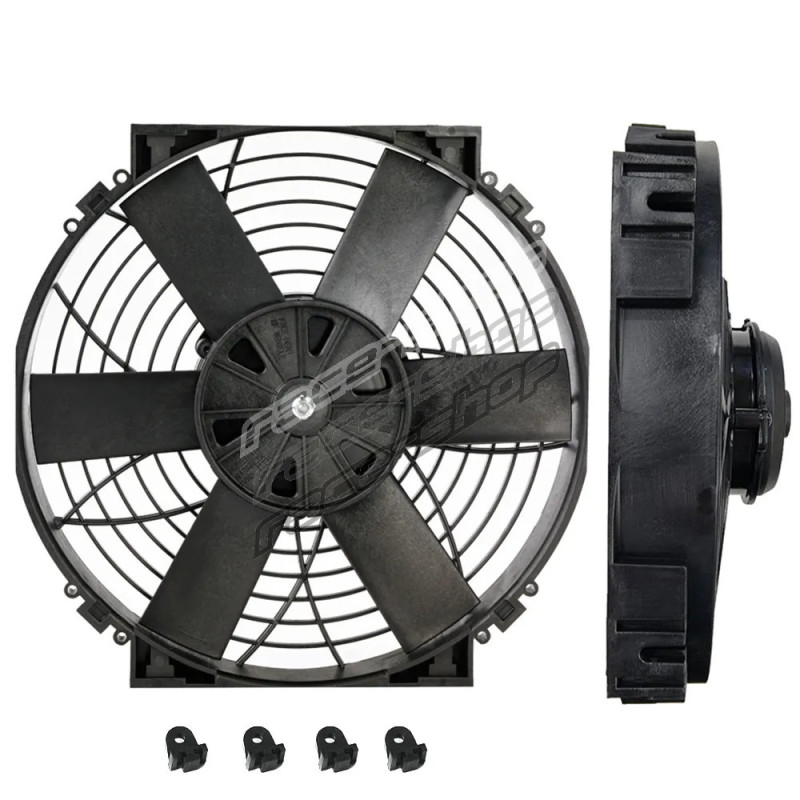

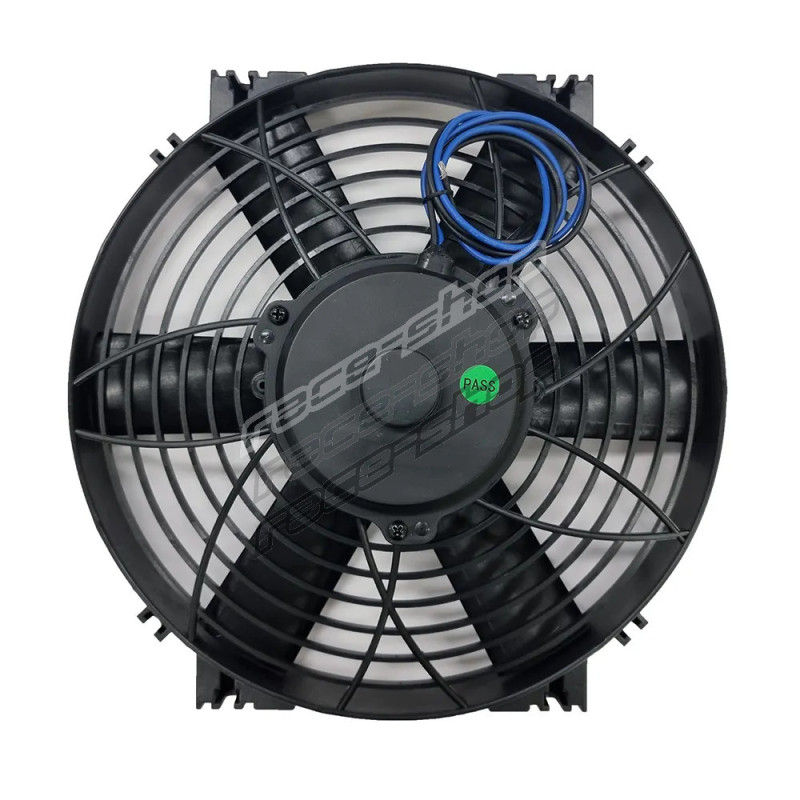

10" High Power Thermatic Electric Fan (12V)

All Davies Craig Thermatic Fans are packaged with fan assembly (motor, fan blade, shroud and mounting feet). Suitable for use as:

• Radiator cooling fans
• Air conditioner condenser fans
• Transmission and engine oil cooler fans

Provides constant or variable air flow, increased fuel economy, and improved A/C performance. Features low profile design and fully reversible blades/polarity for bi-directional air flow.

Set up for UPSTREAM / PUSHER applications from the factory.

Technical data & Contents

SPECIFICATIONS

• Airflow: 1000 CFM
• Max Current: 19A (12V) / 10A (24V)
• Weight: 1.5 kg (3.3 lb)

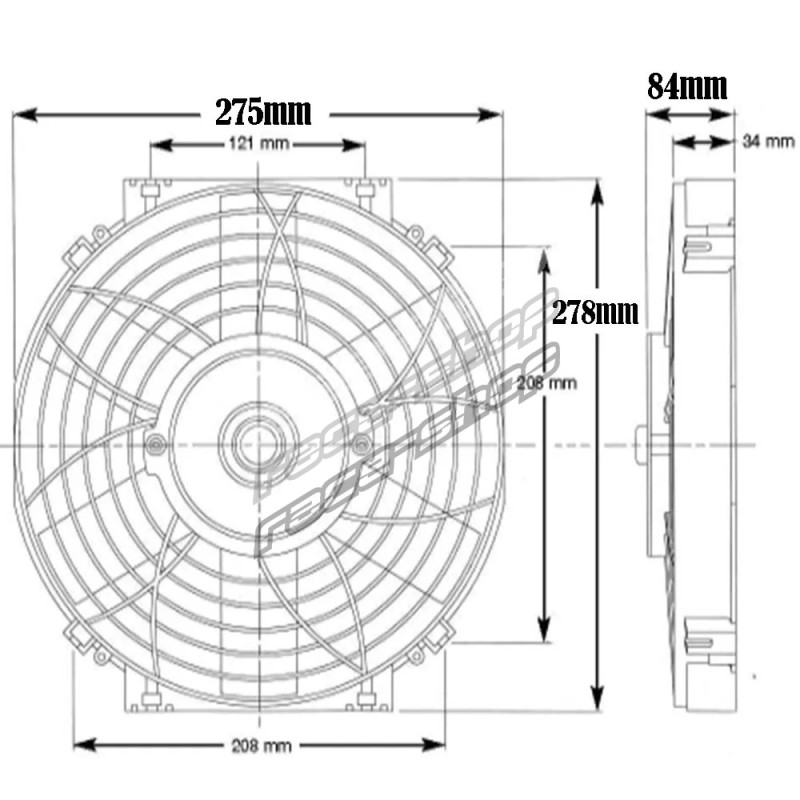

• Dimensions: 278h x 275w x 84d mm

COMPONENTS

• 1: 10" High Power Thermatic® Electric Fan
• 4: Mounting feet

Universal Fan Fitting Kit & Control Options

Mounting Hardware (Sold Separately)

• Quick Fit Kit: Part DC0579
• Mounting Hardware: Part DC0578
• Dual Fan Mounting Kit: Part DC1002
• Bracket Mounting Kits: Parts DC1000, DC1001, DC1002, DC1003

Control Mode Interface

• Digital Switches (12V & 24V):
  DC0444, DC0445, DC0448, DC0435, DC0438, DC0500
• Mechanical Switches:
  DC0401, DC0404, DC0400
