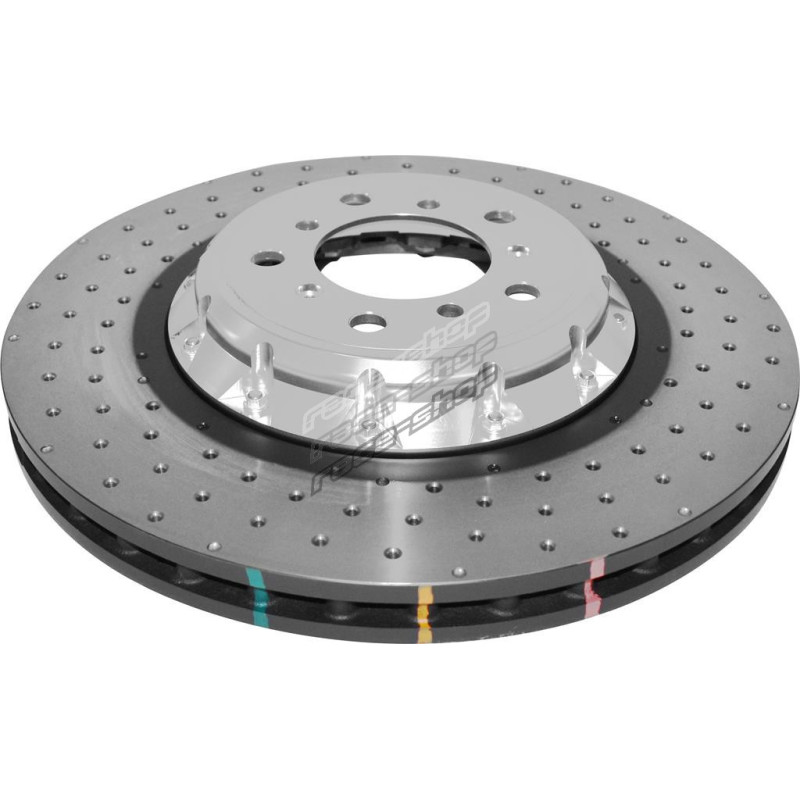

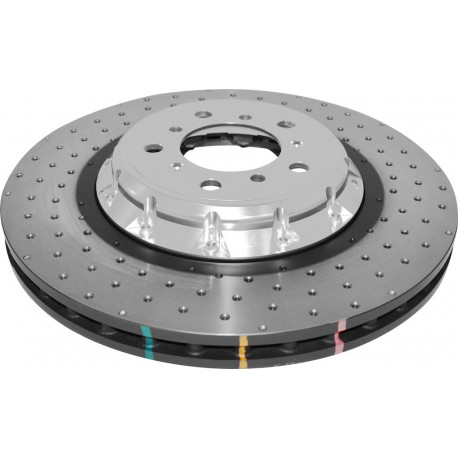

DBA 5000 series Crossed Drilled & Dimpled Silver Hat DBA52280SLVXD (2 pcs)

T3 Slot – 48 Precision CNC-Machined Slots

Feature: Tri-symmetrical curve slots dampen vibration harmonics and reduce noise

Advantage: Provides a quieter, more responsive, and smoother brake pedal feel

Feature: Increased number of out-gassing exit points for brake pad friction gases

Advantage: Improves the consistency and effectiveness of every brake stop

Feature: Universal slot design

Advantage: Eliminates the need for separate left and right discs

Kangaroo Paw – 144 Diamond and Tear Drop Pillar Ventilation System

Feature: Increased surface area enhances heat dissipation

Advantage: Minimizes brake fade and improves braking effectiveness

Benefit: Prolongs the service life of pads and rotors while reducing mechanical damage and related costs

XG150 High Carbon Alloyed Iron

Feature: Improved thermal capacity allows rotors to withstand extended exposure to high temperatures

Advantage: Minimizes rotor warping and cracking

Benefit: Extends the operational life of the rotor under demanding conditions

Thermal Stability Profiling (TSP)

Feature: Special alloy formulation optimized for DBA’s TSP process

Advantage: Increases rotor resilience to thermal stress

Benefit: Reduces likelihood of warping or cracking and extends rotor life

Thermographic Temperature Monitoring (TTM)

Feature: Heat-sensitive paint markings that change color at specific temperature thresholds

Advantage: Gives a clear visual indication of peak braking temperatures

Feature: Permanent color change once heat thresholds are exceeded

Benefit: Allows the driver to track rotor fatigue and determine when replacement is necessary; assists resellers with warranty claims

Paint Protection on Non-Friction Areas

Feature: Protective coating applied to non-contact rotor surfaces

Advantage: Reduces corrosion and prevents rust formation

Benefit: Improves long-term appearance and adds value to the product

Technical information:

Diameter [mm]: 360
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 79
Minimum Thickness [mm]: 28,4
Thickness [mm]: 30
Height [mm]: 62.3
Stage: Stage 5

Suitable for:

Front - BMW/1 Series (E82 1M Coupe) 1M/3.0 Twin Turbo 340BHP (2011-2012) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/1 Series (E82 M Coupe) 135/3.0 Turbo (2011-2013) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/M3 E90/4.0 (2007-2010) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/M3 E90/4.0 (2010-2011) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/M3 E92/4.0 (2007-2010) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/M3 E92/4.0 (2010-2013) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/M3 E93/4.0 (2007-2010) Brake Pads: DB1498, Brake Caliper: ATE Front - BMW/M3 E93/4.0 (2010-2013) Brake Pads: DB1498, Brake Caliper: ATE
