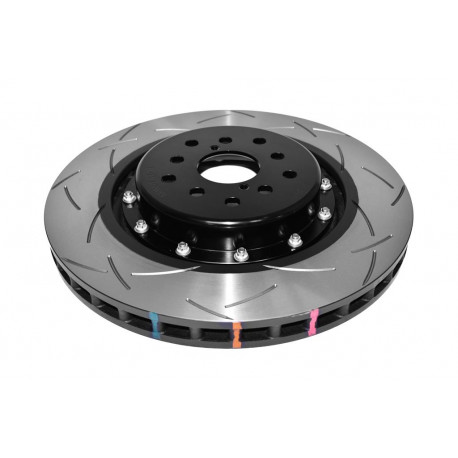

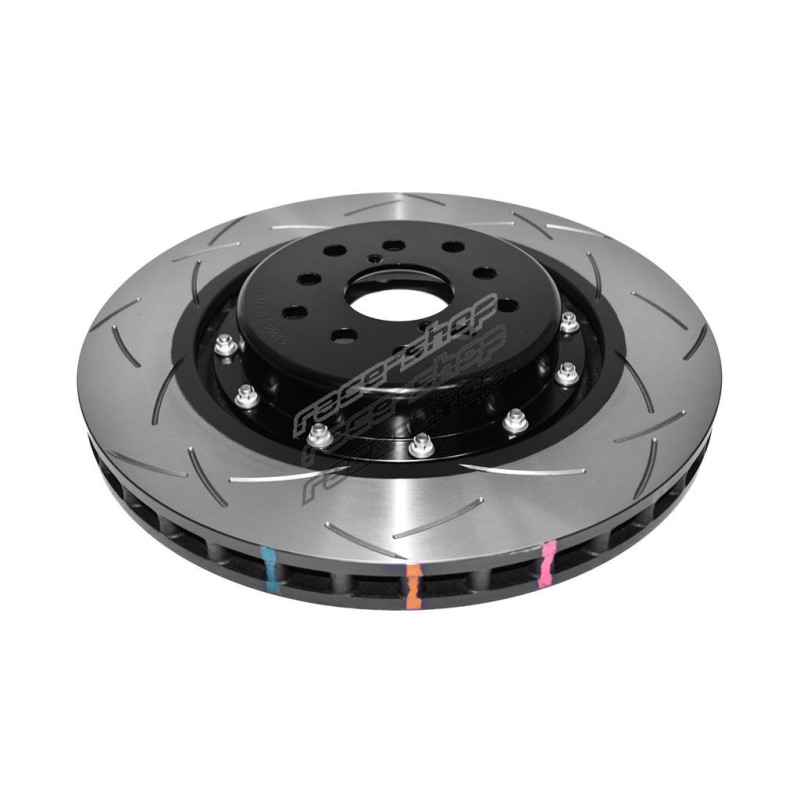

DBA 5000 series T3 Slotted Black Hat DBA53050BLKS-10 (2 pcs)

T3 Slot – 48 Precision CNC-Machined Slots

Feature: Tri-symmetrical curved slots dampen vibration harmonics and noise

Advantage: Delivers a quieter, more responsive, and smoother brake pedal feel

Feature: Increased number of outgassing exit points

Advantage: Enhances consistency and effectiveness of every brake stop

Feature: Universal slot design

Advantage: Eliminates the need for left and right disc variants

Kangaroo Paw – 144 Diamond and Tear Drop Pillar Ventilation System

Feature: Increased surface area for improved heat dissipation

Advantage: Minimizes brake fade and boosts braking effectiveness

Benefit: Extends pad and rotor life, reduces wear and repair costs

XG150 High Carbon Alloyed Iron

Feature: Enhanced thermal capacity for sustained high-heat conditions

Advantage: Minimizes rotor warping and cracking

Benefit: Extends rotor durability and performance consistency

Thermal Stability Profiling (TSP)

Feature: Special rotor formulation engineered for DBA’s TSP process

Advantage: Increases resistance to heat-related deformation

Benefit: Extends rotor lifespan and reliability

Thermographic Temperature Monitoring

Feature: Heat-sensitive paint markings change color at specific temperature thresholds

Advantage: Provides real-time visual feedback on peak rotor temperatures

Feature: Permanent color change after exceeding thresholds

Benefit: Helps drivers monitor rotor fatigue and plan timely replacements. Assists with warranty validation

Paint Protection on Non-Friction Areas

Feature: Anti-corrosion coating applied to non-friction surfaces

Advantage: Reduces rust formation

Benefit: Improves visual appeal and long-term product value

Technical information:

Diameter [mm]: 340
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 58.02
Minimum Thickness [mm]: 28
Thickness [mm]: 30
Height [mm]: 53.00
Stage: Stage 5
ECE R90 number: E11*90R02/06*60512*00

Suitable for:

Front - SUBARU/WRX STi/2.5 Turbo 300BHP (2017-2021) Brake Pads: DB1845, Brake Caliper: Brembo
