*420 517
RWD POWER ECUMaster EMU Classic Wiring Harness for DASH5 / DASH7
Ready-made UART (RS232) wiring harness for connecting RWD POWER DASH5 and DASH7 displays to an ECUMaster EMU Classic ECU, with alarm buzzer included.
Novi proizvod
RWD-WIR-EMU
Preporučeni proizvodi
Ready-made UART (RS232) wiring harness for connecting RWD POWER DASH5 and DASH7 displays to an ECUMaster EMU Classic ECU, with alarm buzzer included.

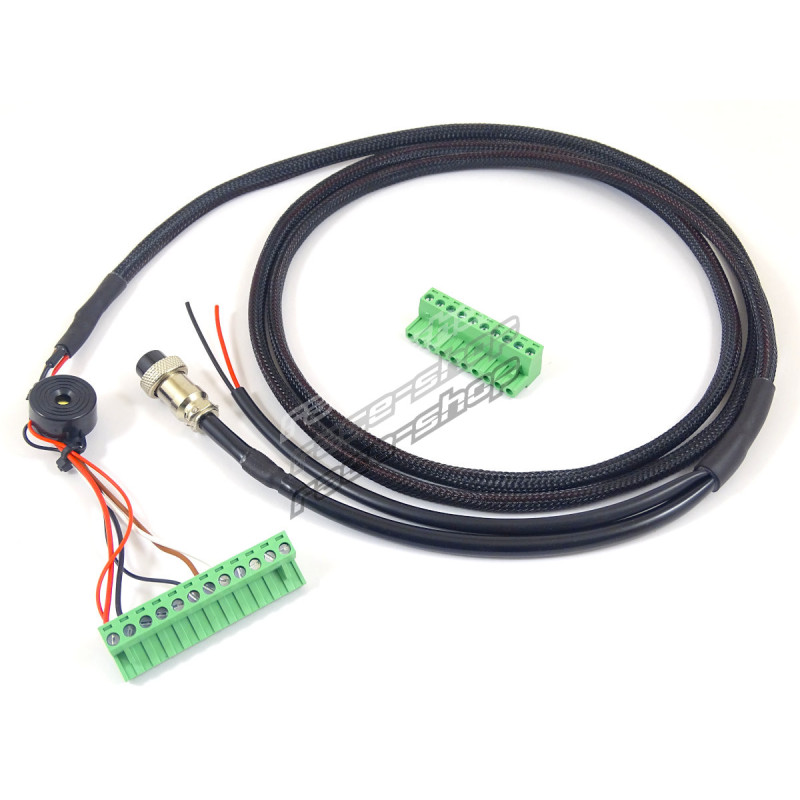

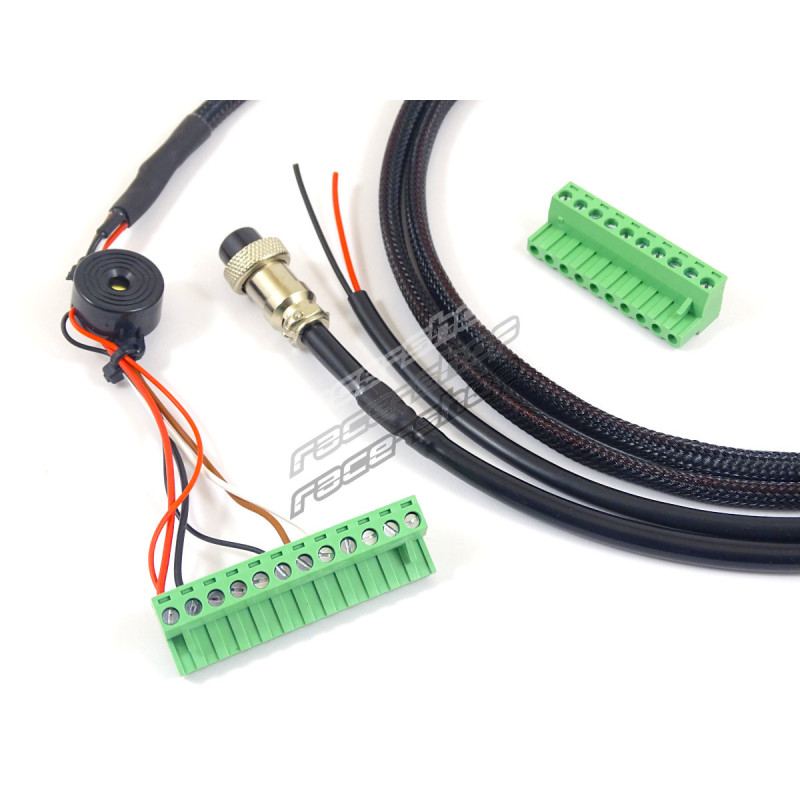

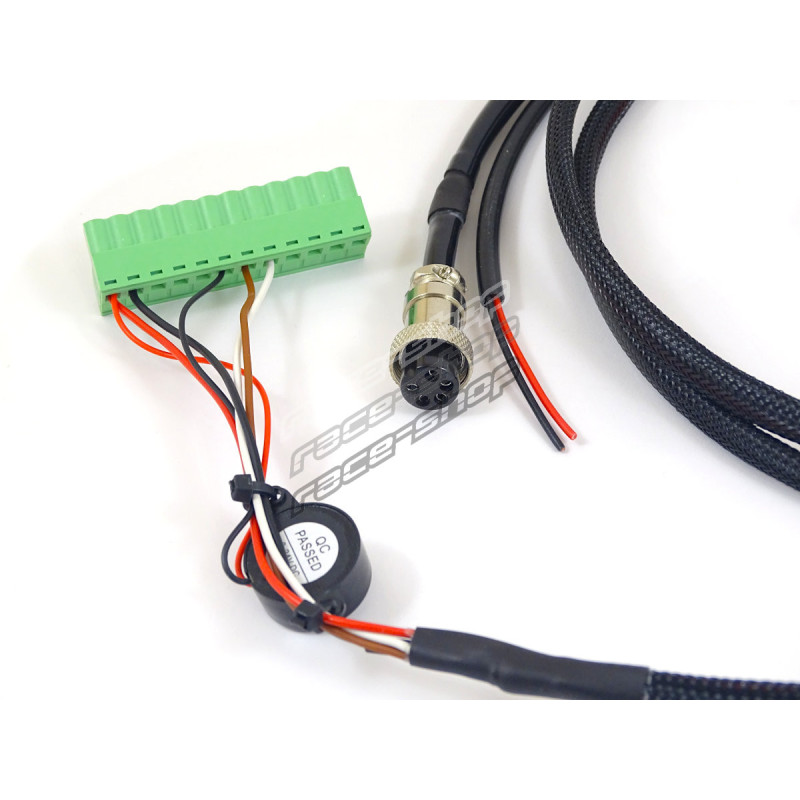

UART (RS232) wiring for connecting an ECUMaster EMU Classic to the RWD POWER DASH7 and DASH5 displays. The harness is pre-assembled and ready to plug into the display.
The set includes:
- 10 pin connector (for analog inputs)
- 12 pin connector with connected UART (RS232) RXD and TXD signals, ALARM (buzzer) and power supply
- Red wire (+12 V power supply after ignition) – connect for example to pin 18 of the grey EMU Classic connector
- Black wire (ground – GND) – connect for example to pin 17 of the black EMU Classic connector
- Buzzer (alarm speaker)
