Garrett 913840-5002S Supercore GBC Series GBC37-900, Trim 64

Garrett GBC37-900 supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GBC turbochargers.

Garrett GBC Turbochargers are high performance-journal bearing products in a cost effective price range. GBC combines modern, flow-optimised aerodynamics with a robust journal bearing CHRA to produce a powerful and affordable turbocharger.

Specifications

• Frame: GBC37
• Bearing: journal bearing
• Rotation: standard

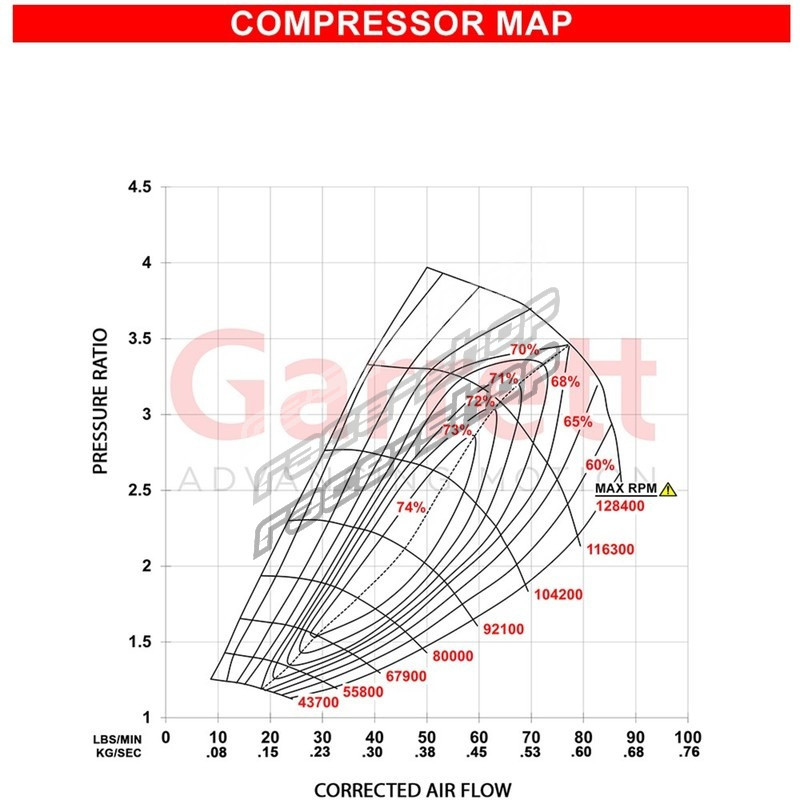

• Compressor wheel: 67 mm inducer, 84 mm exducer, 64 trim, 0.72 A/R
• Turbine wheel: 73 mm inducer, 65 mm exducer, 80 trim
• Power: up to 900 HP
• Displacement: 2.0-5.5 L

Features

• Latest CFD-optimised, milled and forged high-performance impeller
• Journal bearing
• 360 degree thrust bearing
• Oil cooling center housing
• Rotation: Standard
• Billet compressor wheel with extended tip design for higher pressure ratios
• Machined boost signal port with installed plug
