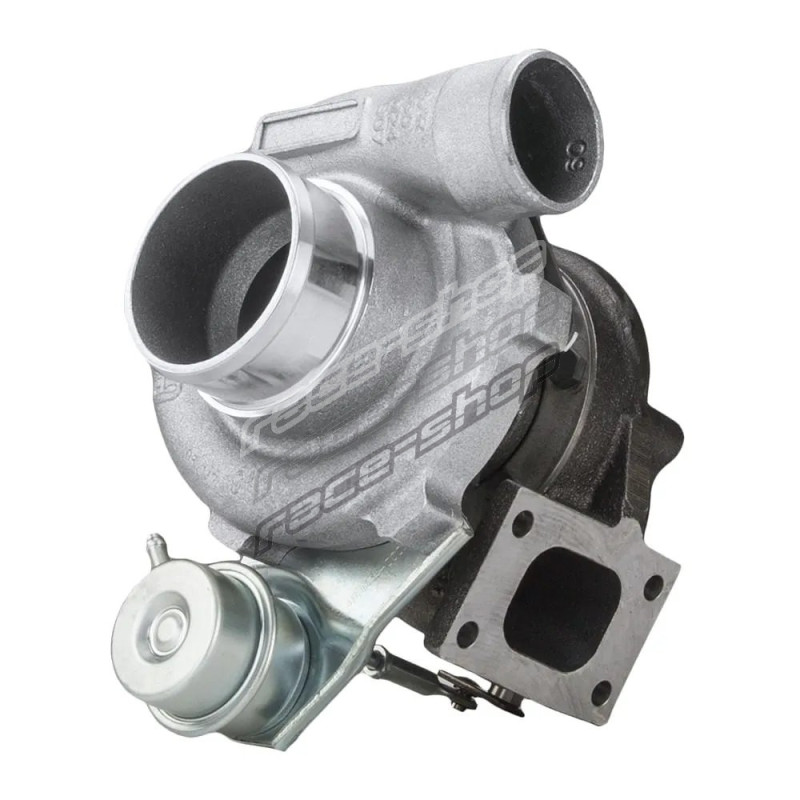

GARRETT 836026-5020S TURBOCHARGER GT2871R 8MM BB UPGRADE 0.86 A/R

Ball bearing.

Oil & Water cooled bearign system.

Direct replacement upgrade turbocharger for GT2860RS (739548-0001)

Comes as a kit; end housings are not assembled onto CHRA.

T25 turbine inlet flange.

Great size for applications w/packing constrains.

Ideal for smaller displacement engines making up to 400 Hp.

Turbine housing option available.

HORSEPOWER 280HP - 475HP

DISPLACEMENT 1.8L - 3.0L

• Turbo Part Number | Model | Turbine side | Compressor side
• New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R
• 836026-5020S | 743347-5002S | GT2871R | 53.8 | 47.0 | 76 | .86 | 71.0 | 53.1 | 56 | .60

C.H.R.A. Part Number

• New Part CHRA | Old Part CHRA
• 835998-5010S | 446179-5032S

Applicable Garrett P/N's:

TBO -  743347-0002

CHRA - 446179-0032

743347-5001S

743347-5002S

743347-5003S

743347-5004S

743347-5001

743347-5002

743347-5003

743347-5004

743347-1

743347-2

743347-3

743347-4

Product category: Turbocharger
