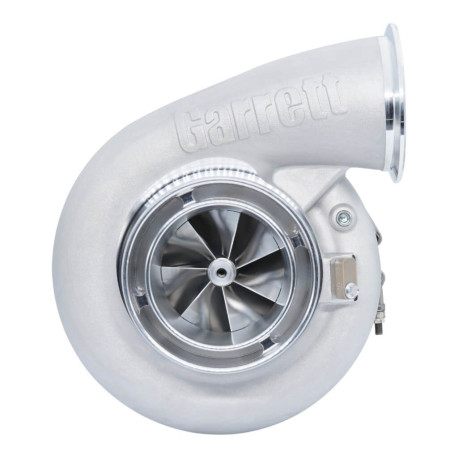

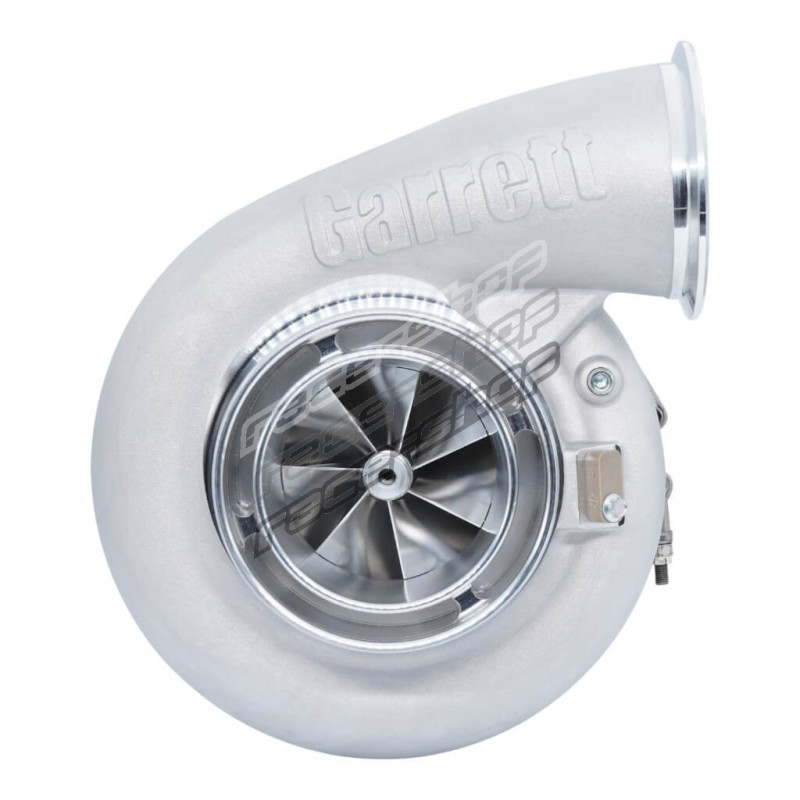

GARRETT 952766-5005S SUPERCORE G-XRACE GXR45-82

Description GARRETT 952766-5005S Supercore G-Xrace GXR45-82

Garrett G-XRace turbochargers are designed to increase power, improve airflow capacity, and operate at higher boost levels.

• XBoost technology increases power and overall performance
• Up to 29% increase in compressor flow compared to the G-Series line (depending on size)
• The increased pressure ratio allows operation at higher boost levels.
• Increased efficiency at high flow rates provides cooler and denser air
• Lightweight aluminum back plate reduces overall weight of turbocharger
• A flanged port for a speed sensor simplifies installation and monitoring of turbine speed.
• Compatible with Garrett 781328-0003, 781328-0004 sensors and G-Smart Bluetooth Module (PN 923586-0003)
• Power: 1800 hp
• Compressor (Inducer): 82.9 mm
• Compressor (Exducer): 109 mm
• Turbine (Iducer): 89 mm
• Turbine (Exducer): 82 mm

Warning: Operating the turbocharger above its maximum rotational speed is at the owner's risk and may result in damage and premature failure. To protect against overspeeding, the compressor housing has a port for installing a compatible speed sensor. Sensor kits are sold separately.

Product category: Turbocharger
