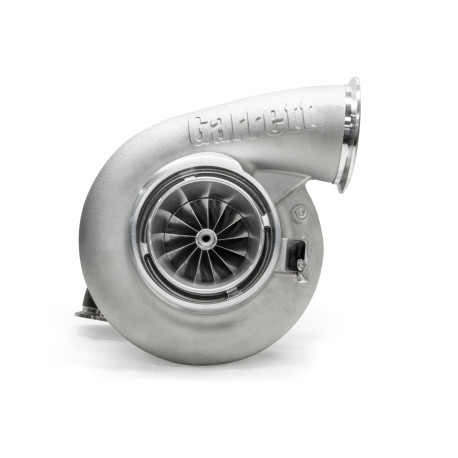

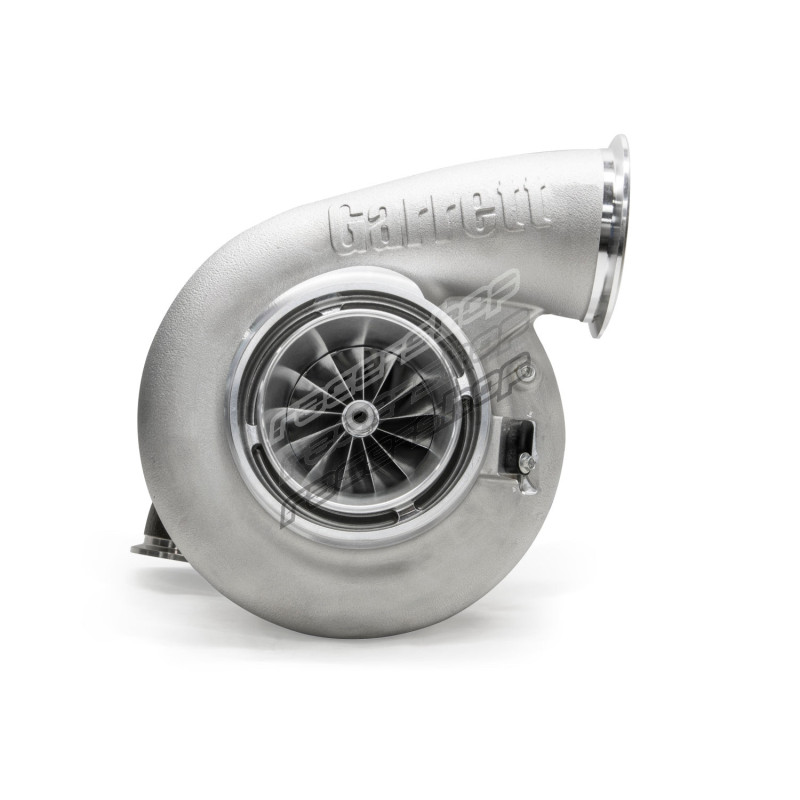

GARRETT 888169-5005S SUPER CORE - G45-1500

An exciting new addition to the G Series performance product line. G45 mid-frame turbochargers are engineered for 2.0L - 8.0L engine displacements and capable of supporting from 600 - 1500 horsepower. G45 provides a 24% increase in compressor flow and a 14% increase in turbine flow when compared to the GTX4508R turbo. Stainless steel turbine housings are available in T4 divided inlet configurations.

• G45-1500 (previously 1550) compressor aero increases flow up to 18% (compared to GTX4508R 76mm)

• G45-1350 compressor aero increases flow up to 15% (compared to GTX4502R 72mm)

• G45-1125 compressor aero increases flow up to 10% (compared to GTX4502R 67mm)

• G Series turbine aero increases flow 14% (compared to GTX45R)

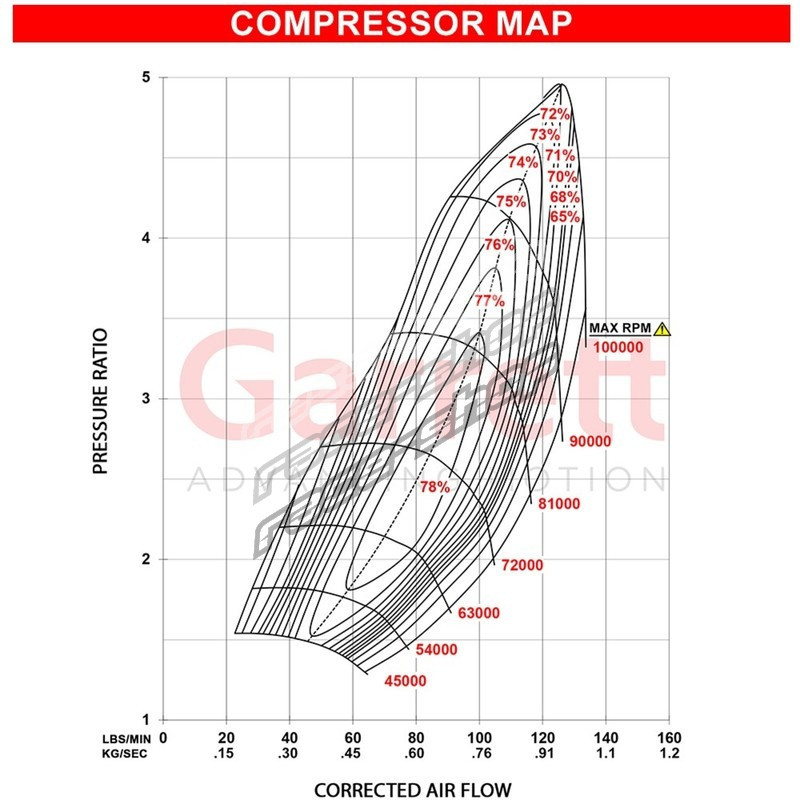

Horsepower comparisons for each G45 inducer size have been added to the sell sheet. Notably, 76mm has been updated from 1550 to the G45-1500. This was calculated from the compressor map data of the GTX4508R / GTX4502R to better represent the increase in performance in G45. GTX4508R uses an 80mm/108mm compressor wheel and through calculations we can estimate the performance of the new, smaller G45 sizes to produce more power than the GTX4508R turbo.

Features:

Three super core part number configurations: 67mm (600-1125hp), 72mm (650-1350hp), and 76mm (750-1500hp)

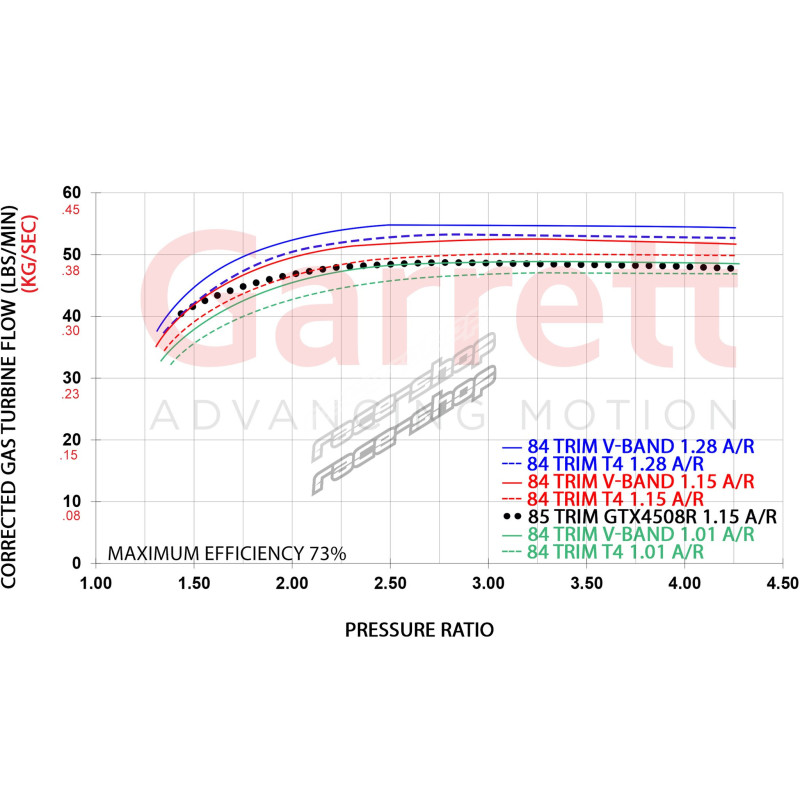

Four stainless steel T4 divided turbine housing configurations: 1.01 A/R, 1.15 A/R, 1.28 A/R, 1.44 A/R

Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min

Lightweight aluminum backplate

Fully machined speed sensor and pressure ports

Water fittings included with super core

Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

NOTE

For a complete turbine kit, purchase one of the  Turbine Housing with the characteristics you need

WARNING: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits.  Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers  781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART MODULE ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.

Product category: Turbocharger
