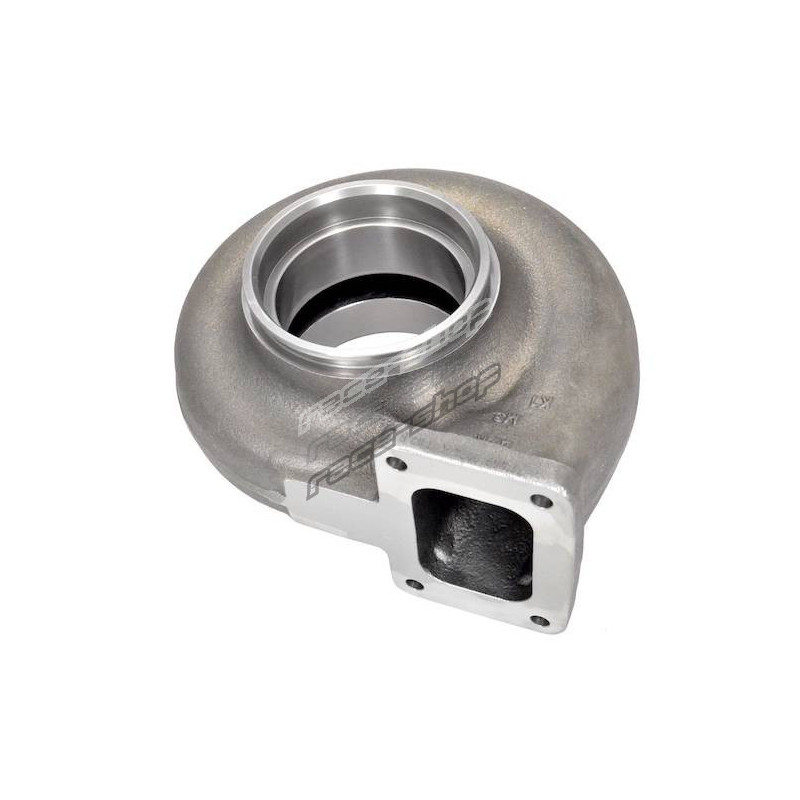

GARRETT 761208-0073 TURBINE HOUSING KIT G55 T6/V-BAND 1.24 A/R

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 15% (Compared to GTX Gen II, see graph below). The large 90 trim turbine stage measures 112mm at the inducer and 106mm at the exducer. G55 is offered with stainless steel turbine housings in:
V-Band Inlet: 1.24 A/R, 1.40 A/R
T6 Inlet: 1.00 A/R, 1.12 A/R, and 1.24 A/R, 1.40 A/R

Part Numbers

• 1.24 A/R: 761208-0069 (V-band inlet & Outlet)
• 1.40 A/R: 761208-0070 (V-band inlet & Outlet)
• 1.00 A/R: 761208-0071 (T6 inlet & V-Band Outlet)
• 1.12 A/R: 761208-0072 (T6 inlet & V-Band Outlet)
• 1.24 A/R: 761208-0073 (T6 inlet & V-Band Outlet)
• 1.40 A/R: 761208-0074 (T6 inlet & V-Band Outlet)

Product category: Turbocharger
